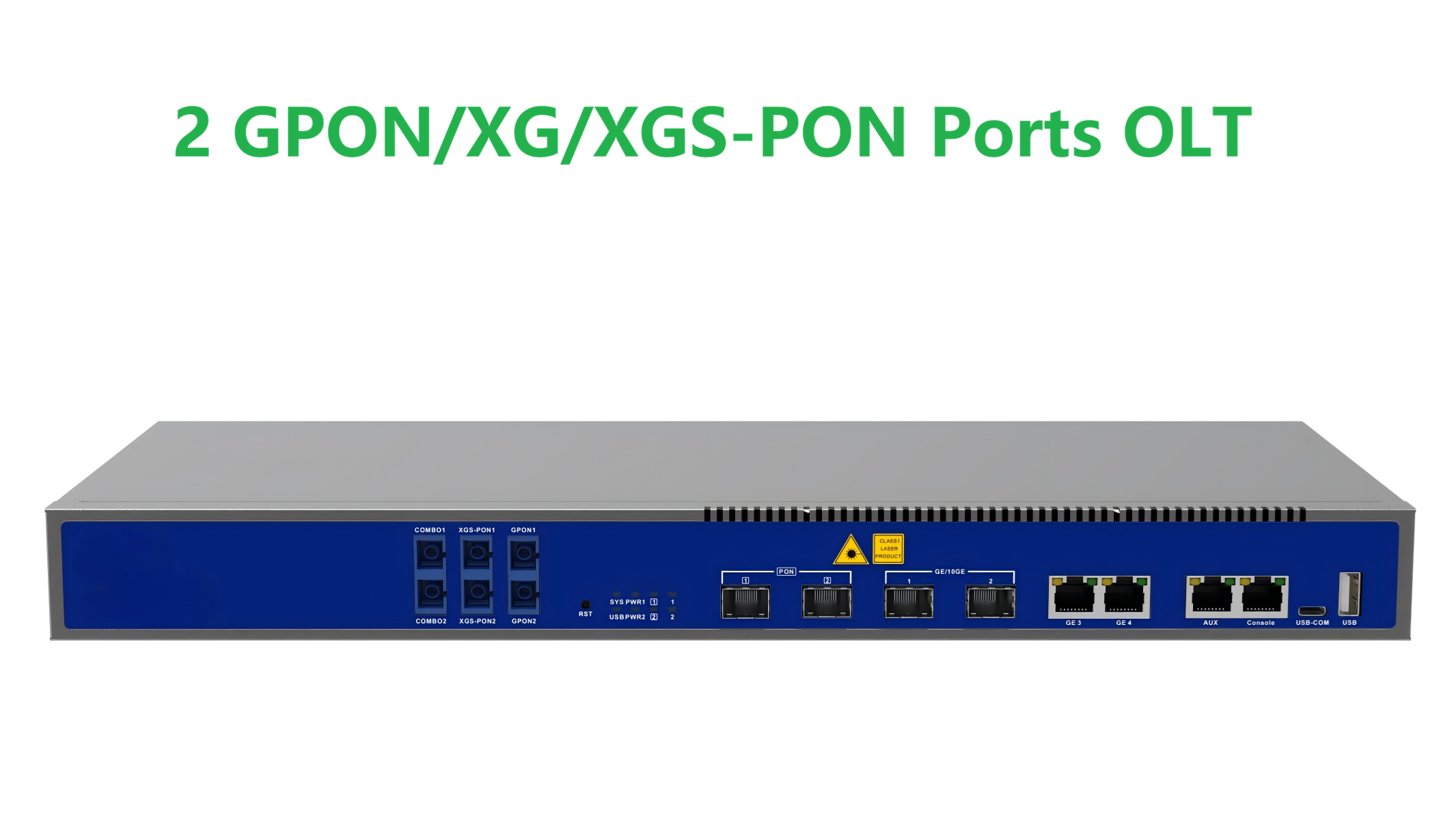

2 GPON/XG/XGS-PON Ports OLT Layer 3

Uplink Port

QTY

4

Copper RJ45 (GE)

2

SFP (GE/10GE)

2

PON Port

QTY

2

Physical interface

SFP+ Slot

Splitting ratio

1:256 (Maximum), 1:128 (Recommended)

Built in WDM1r

2*GPON Input ports, 2*XGS-PON Input ports, 2*COMBO Output ports

Transmission distance

20KM

Speed

GPON:  upstream1.244Gbps, downstream 2.488Gbps

XG-PON: upstream 2.488Gbps, downstream 9.953Gbps

XGS-PON: upstream 9.953Gbps, downstream 9.953Gbps

Wavelength

GPON: upstream 1310nm, downstream 1490nm

XG-PON, XGS-PON: upstream 1270nm, downstream 1577nm

Connector type

SC/UPC

Fiber type

9/125μm SMF

Others

Backplane bandwidth

208Gbps

Port forwarding rate

124.992Mbps

Management port

1*10/100/1000BASE-T out-band port, 1*CONSOLE port,

1*USB COM, 1*USB 2.0 port

Management mode

CLI, Telnet, WEB

Chassis

1U 19-inch Rack Standard Box

Dimension

442mm*320mm*43mm (L*W*H)

Weight

2.5 KG

Power supply

AC 100V~240 V ; DC -36V~-75V

Option I: Single power supply AC

Option II: Single power supply DC

Option III: Double power supply AC+ DC

Option IV: Double power supply AC+AC

Option V: Double power supply DC+DC

Power consumption

≤40W

Operating environment

Working Temp: -20℃~+60℃

 Storage Temp:-40℃~+70℃

Relative Humidity: 5%~95% (non-conditioning)

Model

Description

LG-OLT-XGSPON-02

2 GPON/XG/XGS-PON Ports OLT, with uplink 2*GE Copper port, 2*GE/10GE SFP+ slots

PON OLT SFP Module

XG-PON, XGS-PON SFP module: Class N2

GPON OLT SFP Module: Class B+, C+, C++, C+++

GE SFP module, 10GE SFP+ module for uplink
