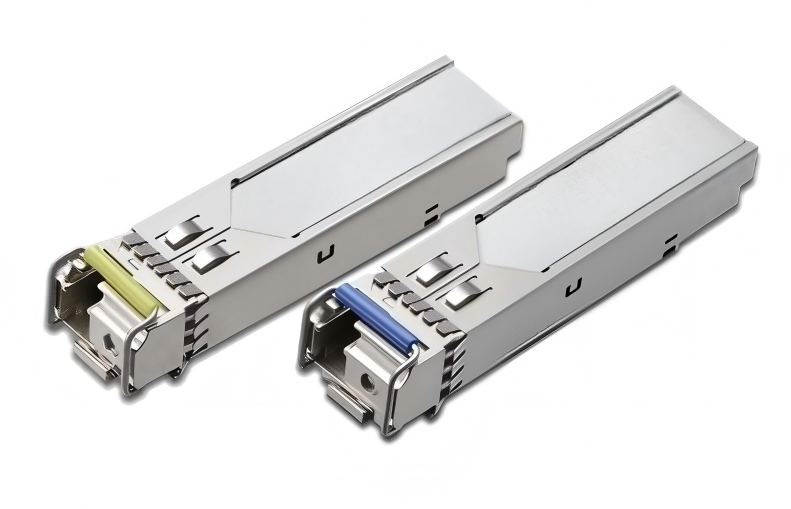

155M SFP BiDi Transceiver WDM 20km
LG-SFP-FE-SX35-LDC-20
Product Overview
155M SFP Bi-Directional Module, WDM, TX1310nm RX1550nm, simplex LC connector, 20km, with DDM, 0~+70℃
Product Information
Product Details
Feature
Use only one fiber for transmission and reception.
Up to 155Mb/s bi-directional data links.
Up to 20km transmission distance over 9/125μm single mode fiber.
Hot-pluggable SFP footprint.
With Digital Diagnostic Monitoring（DDM).
Satisfy Class 1 FDA laser safety requirements.
Compatible with RoHS, lead free.
Metal enclosure, for lower EMI.
Application
Fast Ethernet
Fiber Channel
Switch/Router
Specification (Commercial Standard)
Model | LG-SFP-FE-SX35-LDC-20 | LG-SFP-FE-SX53-LDC-20 |
Data rate | 155Mbps | 155Mbps |
Wavelength | TX 1310nm RX 1550nm | TX 1550nm RX 1310nm |
Fiber mode type | Single mode | Single mode |
Max transfer distance | 20km | 20km |
Connector Type | Simplex LC | Simplex LC |
TX laser type | FP BiDi | FP BiDi |
RX type | PIN | PIN |
TX power | -15~-3dBm | -15~-3dBm |
RX sensitivity | <-32dBm | <-32dBm |
Power supply | +3.3V | +3.3V |
Max power dissipation | 1W | 1W |
Operating Temp | 0~+70℃ | 0~+70℃ |
Protocol | IEEE802.3u SFP MSA SFF-8472 | IEEE802.3u SFP MSA SFF-8472 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-FE-SX35-LDC-20 | 155M SFP BiDi Transceiver WDM 20km | In Stock |
Quality Assurance
ISO/FCC Dual Certified
Fast Delivery
1-10 days lead time
