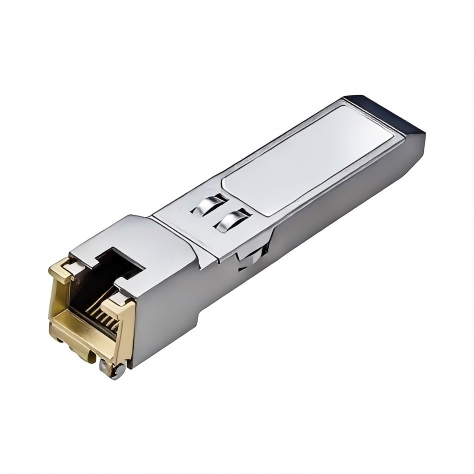

1000Mbps Copper RJ45 SFP Transceiver
LG-SFP-GE-T-SGMII
Product Overview
10/100/1000Mbps SFP SGMII Transceiver, RJ45 interface, 0~+70℃.
Product Information
Product Details
Feature
Compliant with SFP MSA and EEE Std 802.3 Gigabit Ethernet standard.
Built-in Marvell chip.
Hot-pluggable SFP footprint.
Compatible with RoHS, and lead free.
Metal enclosure for lower EMI.
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Application
Gigabit Ethernet
Switch to Switch interface
Switched backplane applications
Router/Server interface
Specification
Model | LG-SFP-GE-T-SGMII | LG-SFP-GE-T |
Data rate | 10/100/1000Mbps self-adaption | 1000Mbps |
Packaging type | SFP SGMII | SFP |
LAN cable type | CAT6, CAT6A | Cat5E/CAT6/CAT6A (UTP) |
Max transfer distance | 100m | 100m |
Interface Type | RJ45 | RJ45 |
DDM/DOM | Without | Without |
RX_LOS | No | No |
Power Supply | +3.3V | +3.3V |
Max power dissipation | 1.2W | 1.2W |
Operating Temp | 0~+70℃ | 0~+70℃ |
Note: The LG-SFP-GE-T-SGMII module is not compatible with Cisco Nexus series switches. To use it with Cisco Nexus series switches, advice select the LG-SFP-GE-T module.
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-GE-T-SGMII | 1000Mbps Copper RJ45 SFP Transceiver | In Stock |
