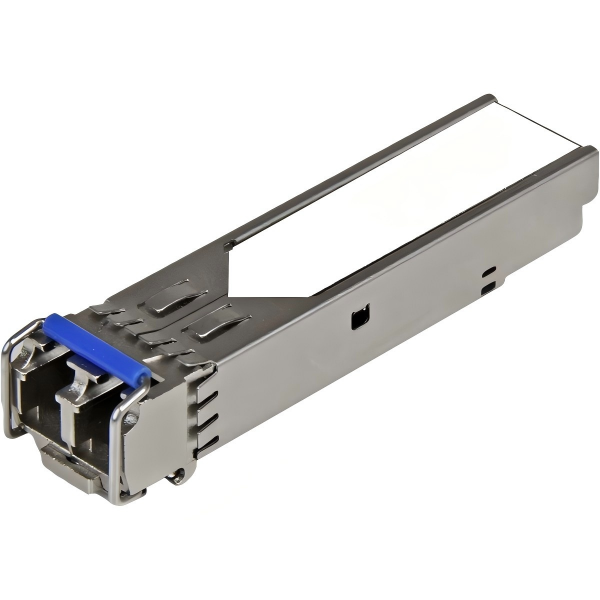

1.25G Optical Module SFP Transceiver SM 1310nm 20KM
LG-SFP-GE-SM13-LDC-20
Product Overview
1.25G SFP Module, SMF 1310nm, 20km, duplex LC connector, with DDM, 0~+70℃
Product Information
Product Details
Feature
Dual data-rate of Gigabit Ethernet 1.25Gbps and Fiber Channel 1.063Gbps operation.
1310nm FP laser transmitter and PIN photodiode.
Up to 20km transmission distance with single mode fiber.
Duplex LC connector
With Digital Diagnostic Monitoring（DDM)
+3.3V single power supply
Satisfy class I laser safety requirements
Compliant with SFP MSA and SFF-8472
Compatible with RoHS
Metal enclosure, for lower EMI
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Specification
Model | LG-SFP-GE-SM13-LDC-20 | LG-SFP-GE-SM13-LDI-20 (Industrial) |
Data Rate | 1.25Gbps | 1.25Gbps |
Wavelength | 1310nm | 1310nm |
Fiber Mode Type | Single mode | Single mode |
Transmission Distance | 20km | 20km |
Connector Type | LC | LC |
Laser Type | FP | FP |
TX Power | -9.5~-3dBm | -9.5~-3dBm |
Receiving Sensitivity | <-23dBm | <-23dBm |
Power Supply | +3.3V | +3.3V |
Max power dissipation | 1W | 1W |
Operating Temp | 0~+70℃ | -40~+85℃ |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-GE-SM13-LDC-20 | 1.25G Optical Module SFP Transceiver SM 1310nm 20KM | In Stock |
