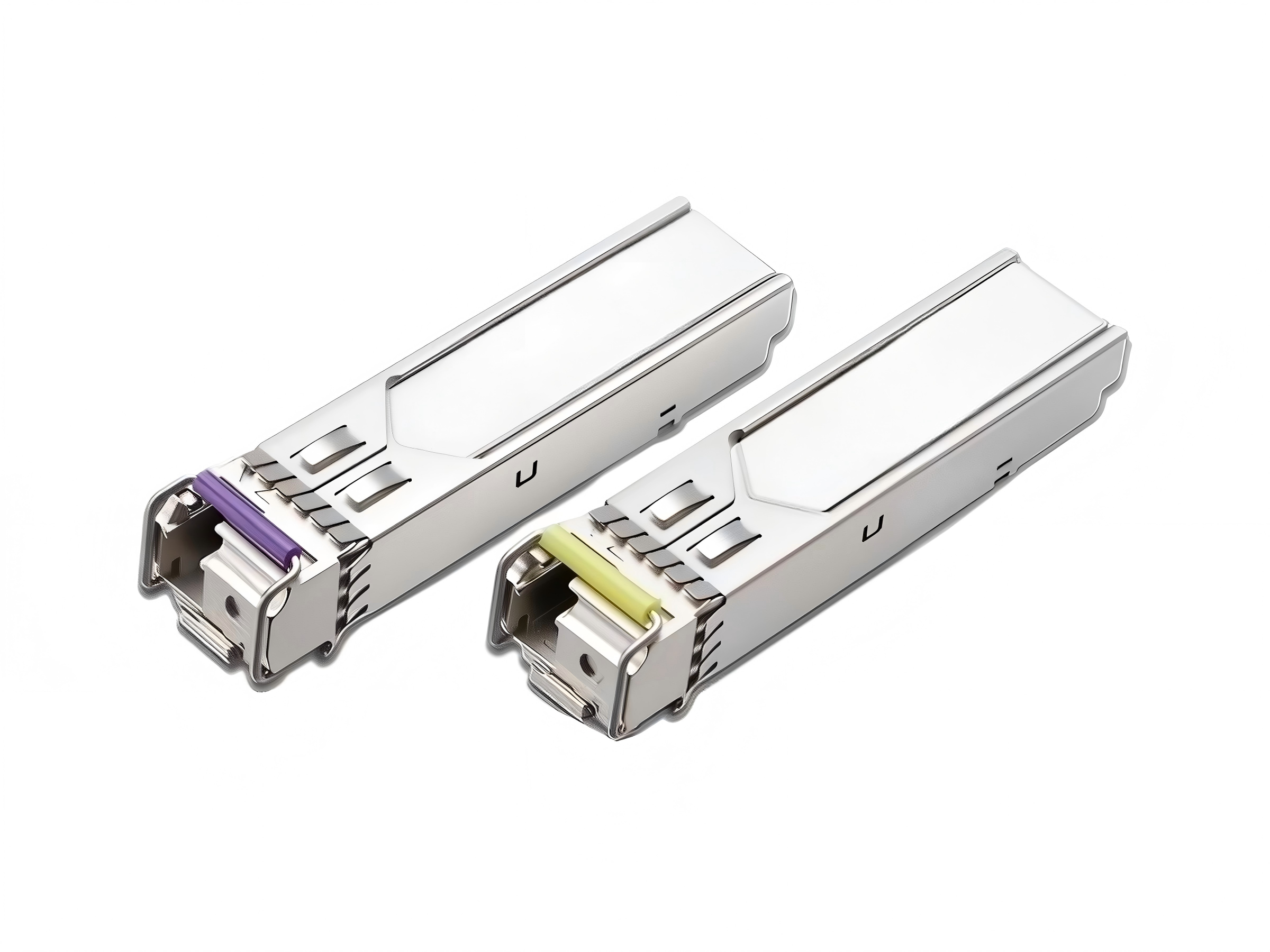

1.25G BiDi Optical Module SFP Transceiver WDM 1490nm 1550nm 80KM
LG-SFP-GE-SX95-LDC-80
Product Overview
1.25G SFP Module, WDM single fiber, TX1490nm RX1550nm, 80km, simplex LC connector, with DDM, 0~+70℃
Product Information
Product Details
Feature
Use only one optical fiber for transmission and reception (BiDi).
Up to 80km transmission distance with single mode fiber.
Simplex LC connector.
Supporting Digital Diagnostic Monitoring（DDM).
Satisfy Class 1 FDA laser safety requirements and RoHS regulations.
Compliant with SFP MSA and IEEE 802.3z Gigabit Ethernet standard.
Metal enclosure, for lower EMI.
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Specification (Commercial Standard)
Model | LG-SFP-GE-SX95-LDC-80 | LG-SFP-GE-SX59-LDC-80 |
Data Rate | 1.25Gbps | 1.25Gbps |
Wavelength | TX 1490nm RX 1550nm | TX 1550nm RX 1490nm |
Fiber Mode Type | Single mode | Single mode |
Transmission distance | 80km | 80km |
Connector Type | Simplex LC | Simplex LC |
Transmitter type | DFB BiDi | DFB BiDi |
Receiver type | PIN | PIN |
TX power | -2~+3dBm | -2~+3dBm |
RX sensitivity | <-24dBm | <-24dBm |
RX overload | -3dBm | -3dBm |
Power supply | +3.3V | +3.3V |
Max power dissipation | 1W | 1W |
Operating Temp | 0~+70℃ | 0~+70℃ |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-GE-SX95-LDC-80 | 1.25G BiDi Optical Module SFP Transceiver WDM 1490nm 1550nm 80KM | In Stock |
