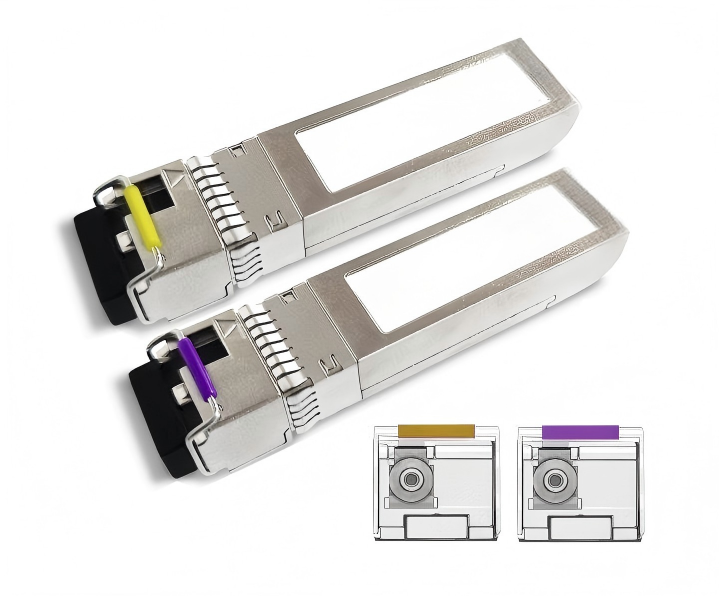

10G SFP+ BiDi Transceiver 1490nm 1550nm 80km
LG-SFP-10G-SX95-LDC-80
Product Overview
10G SFP+ Module, WDM, TX1490nm RX1550nm, simplex LC connector, 80km, with DDM, 0~+70℃
Product Information
Product Details
Feature
Use only one fiber for transmission and reception (BiDi).
Up to 80km transmission distance over 9/125µm OS2 SM fiber.
Supporting Digital Diagnostic Monitoring（DDM).
Hot-pluggable SFP+ MSA.
Satisfy Class 1 FDA laser safety and RoHS (lead free).
Metal enclosure, for lower EMI.
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Specification (Commercial Standard)
Model | LG-SFP-10G-SX95-LDC-80 | LG-SFP-10G-SX59-LDC-80 |
Data rate | 10Gbps | 10Gbps |
Wavelength | TX 1490nm RX 1550nm | TX 1550nm RX 1490nm |
Fiber mode type | Single mode | Single mode |
Max transfer distance | 80km | 80km |
Connector type | Simplex LC | Simplex LC |
Transmitter laser type | EML | EML |
Receiver type | APD | APD |
TX power | 0~5dBm | 0~5dBm |
RX sensitivity | <-21dBm | <-21dBm |
Power supply | +3.3V | +3.3V |
Max power dissipation | 1.8W | 1.8W |
Operating Temp | 0~+70℃ | 0~+70℃ |
Protocols | IEEE 802.3ae SFP+ MSA SFF-8472 SFF-8431 SFF-8432 | IEEE 802.3ae SFP+ MSA SFF-8472 SFF-8431 SFF-8432 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-10G-SX95-LDC-80 | 10G SFP+ BiDi Transceiver 1490nm 1550nm 80km | In Stock |
