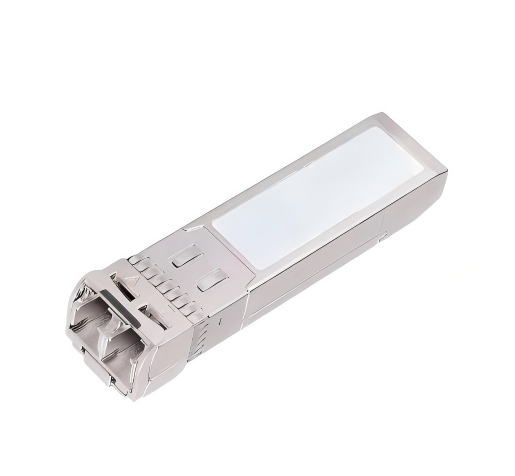

10G SFP+ SR Transceiver MMF 850nm 300m
LG-SFP-10G-MM85-LDC
Product Overview
10G SFP+ SR Module, MMF 850nm, 300 meters, duplex LC connector, with DDM/DOM, 0~+70℃
Product Information
Product Details
Feature
850nm VCSEL laser transmitter and PIN photodiode.
Up to 300m transmission distance over 50/125µm OM3 MM fiber.
Supporting Digital Diagnostic Monitoring（DDM).
Hot-pluggable SFP+ MSA.
NRZ modulation.
Satisfy Class 1 FDA Laser Safety and RoHS ( lead free).
Metal enclosure, for lower EMI.
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Specification
Model | LG-SFP-10G-MM85-LDC | LG-SFP-10G-MM85-LDI (Industrial) |
Data rate | 10Gbps | 10Gbps |
Wavelength | 850nm | 850nm |
Fiber mode type | Multi mode | Multi mode |
Max transfer distance | 300m | 300m |
Connector type | Duplex LC | Duplex LC |
TX Power | -7.3~-1dBm | -7.3~-1dBm |
RX Sensitivity | <-11.1dBm | <-11.1dBm |
RX overload | -1dBm | -1dBm |
Power budget | 3.8dB | 3.8dB |
Extinction ratio | >3dB | >3dB |
Power Supply | +3.3V | +3.3V |
Max power dissipation | 1W | 1W |
Operating Temp | 0~+70℃ | -40~+85℃ |
Protocols
| SFP+ MSA IEEE 802.3ae SFF-8472 SFF-8431 SFF-8432 | SFP+ MSA IEEE 802.3ae SFF-8472 SFF-8431 SFF-8432 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-10G-MM85-LDC | 10G SFP+ SR Transceiver MMF 850nm 300m | In Stock |
