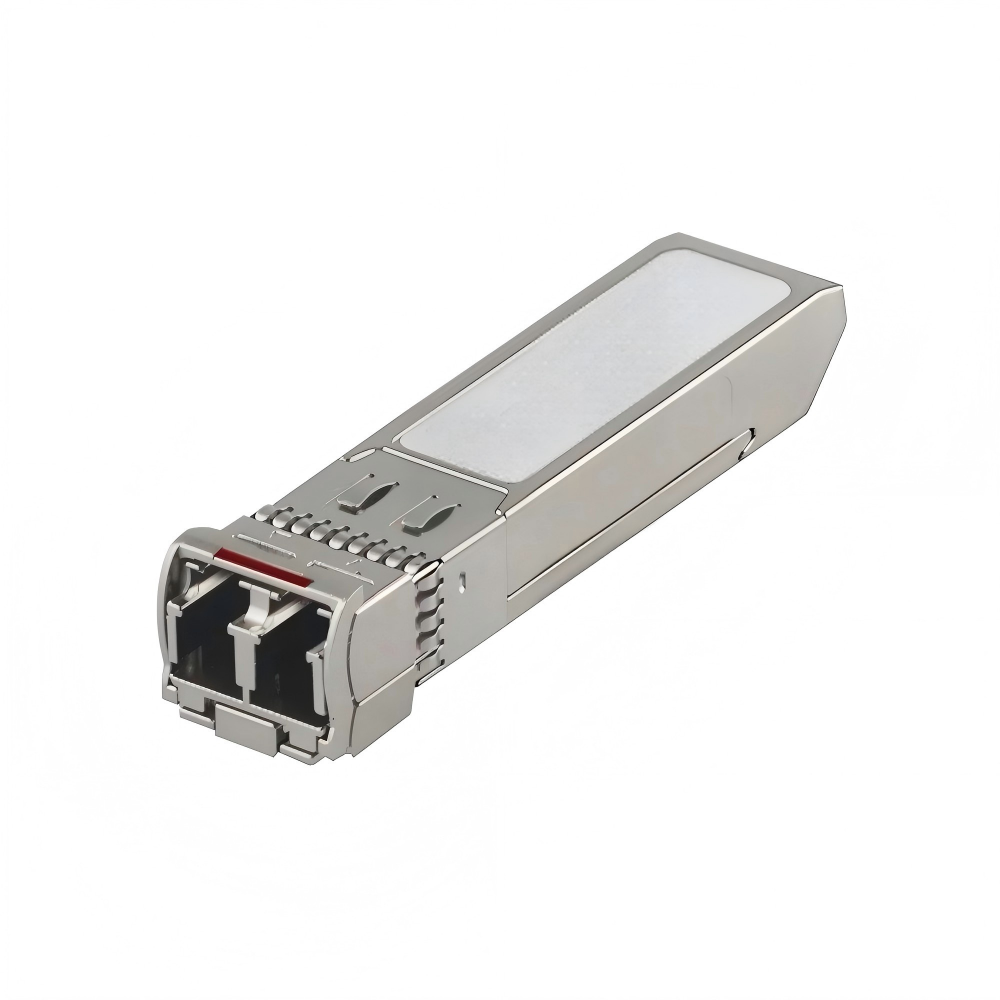

10G SFP+ ER Transceiver SMF 1550nm 40km
LG-SFP-10G-SM15-LDC-40
Product Overview
10G SFP+ ER Module, SMF 1550nm,40km, duplex LC connector, with DDM/DOM, 0~+70℃
Product Information
Product Details
Feature
Supports 9.95G to 11.3G bps rates.
1550nm EML laser transmitter and PIN photodiode.
Up to 40km transmission distance over 9/125µm OS2 SM fiber.
Supporting Digital Diagnostic Monitoring（DDM).
Hot-pluggable SFP+ MSA.
NRZ modulation.
Satisfy Class 1 FDA Laser Safety and RoHS ( lead free).
Metal enclosure, for lower EMI.
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Specification
Model | LG-SFP-10G-SM15-LDC-40 | LG-SFP-10G-SM15-LDI-40 (Industrial) |
Data rate | 10Gbps | 10Gbps |
Wavelength | 1550nm | 1550nm |
Fiber mode type | Single mode | Single mode |
Max transfer distance | 40km | 40km |
Connector type | Duplex LC | Duplex LC |
TX Power | -1~+4dBm | -1~+4dBm |
RX Sensitivity | <-16dBm | <-16dBm |
Power supply | +3.3V | +3.3V |
Max power dissipation | 1.5W | 1.5W |
Operating Temp | 0~+70℃ | -40~+85℃ |
Protocol | SFP+ MSA IEEE 802.3ae SFF-8472 SFF-8431 SFF-8432 | SFP+ MSA IEEE 802.3ae SFF-8472 SFF-8431 SFF-8432 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-10G-SM15-LDC-40 | 10G SFP+ ER Transceiver SMF 1550nm 40km | In Stock |
