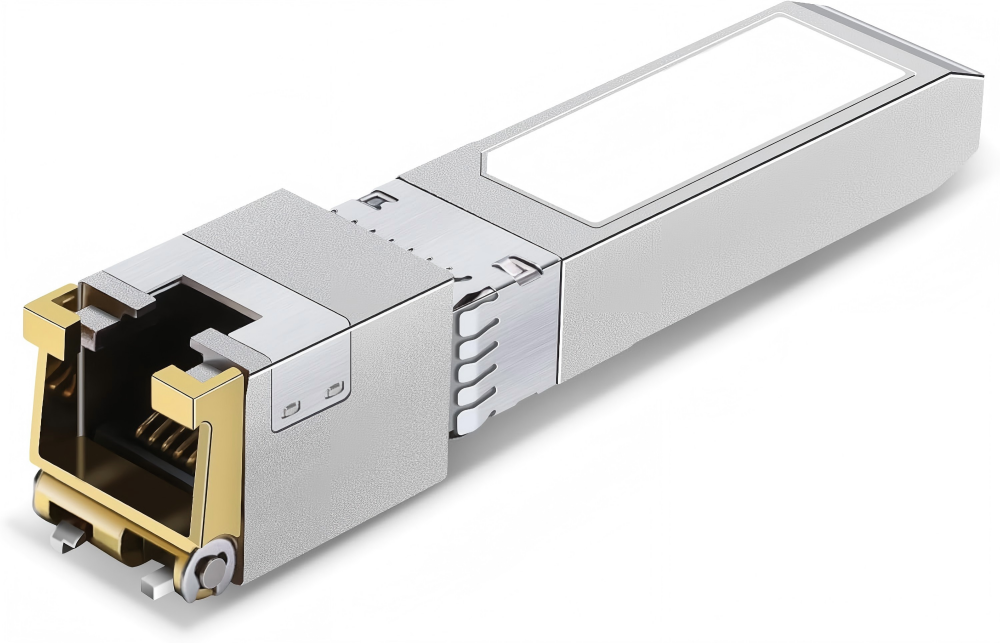

10Gbps Copper RJ45 SFP+ Transceiver
LG-SFP-10G-T-SGMII
Product Overview
10Gbps Copper SFP+ Module, with SGMII, multi-rate auto-negotiation, RJ45 interface, 0~+70℃
Product Information
Product Details
Feature
Built-in Marvell chip.
Hot-pluggable SFP+ footprint.
Compatible with RoHS, and lead free.
Metal enclosure for lower EMI.
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Specification
Model | LG-SFP-10G-T-SGMII | LG-SFP-10G-T |
Data rate | 1G/2.5G/5G/10Gbps Auto-negotiation | support 10Gbps only |
Packaging type | SFP+ SGMII | SFP+ |
Ethernet cable type | 10G over CAT6A/CAT7 5G over CAT5E/CAT6 1G/2.5G over CAT5/CAT5E | CAT6A/CAT7 (UTP) or better |
Max transfer distance (meter) | 10/100/1000M: 100m 2.5G: 100m 5G: 70m 10G: 30m | 30m |
Interface Type | RJ45 | RJ45 |
DDM/DOM | Not | Not |
RX_LOS | Supported | Supported |
EMC | Supported | Supported |
Power Supply | +3.3V | +3.3V |
Max power Consumption | 2.5W | 2.5W |
Operating Temp | 0~+70℃ | 0~+70℃ |
Protocols | IEEE 802.3az SFP+ MSA | IEEE 802.3an IEEE 802.3az SFP+ MSA SFF-8431 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-10G-T-SGMII | 10Gbps Copper RJ45 SFP+ Transceiver | In Stock |
