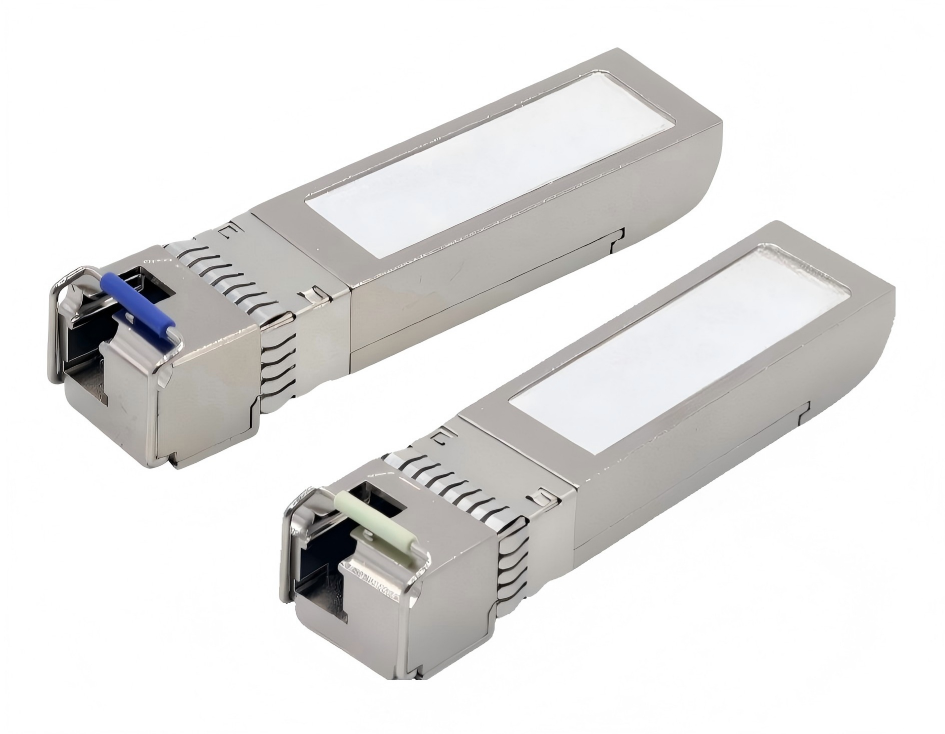

10G SFP+ BiDi Transceiver 1270nm 1330nm 10km
LG-SFP-10G-SX73-LDC-10
Product Overview
10G SFP+ Module, WDM, TX1270nm RX1330nm, simplex LC connector, 10km, with DDM, 0~+70℃
Product Information
Product Details
Feature
Use only one fiber for transmission and reception (BiDi).
Up to 10km transmission distance over 9/125µm OS2 SM fiber.
Supporting Digital Diagnostic Monitoring（DDM).
Hot-pluggable SFP+ MSA.
Satisfy Class 1 FDA laser safety and RoHS (lead free).
Metal enclosure, for lower EMI.
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Specification (Commercial Standard)
Model | LG-SFP-10G-SX73-LDC-10 | LG-SFP-10G-SX37-LDC-10 |
Data rate | 10Gbps | 10Gbps |
Wavelength | TX 1270nm RX 1330nm | TX 1330nm RX 1270nm |
Fiber mode type | Single mode | Single mode |
Max transfer distance | 10km | 10km |
Connector type | Simplex LC | Simplex LC |
Transmitter laser type | DFB | DFB |
Receiver type | PIN | PIN |
TX power | -6.5~0.5dBm | -6.5~0.5dBm |
RX sensitivity | <-14.4dBm | <-14.4dBm |
Power budget | 7.9dBm | 7.9dBm |
RX overload | 0.5dBm | 0.5dBm |
Extinction ratio | >3.5dB | >3.5dB |
Power supply | +3.3V | +3.3V |
Max power dissipation | 1W | 1W |
Operating Temp | 0~+70℃ | 0~+70℃ |
Protocols | IEEE 802.3ae, SFP+ MSA, SFF-8472, SFF-8431, SFF-8432. | IEEE 802.3ae, SFP+ MSA, SFF-8472, SFF-8431, SFF-8432. |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-10G-SX73-LDC-10 | 10G SFP+ BiDi Transceiver 1270nm 1330nm 10km | In Stock |
