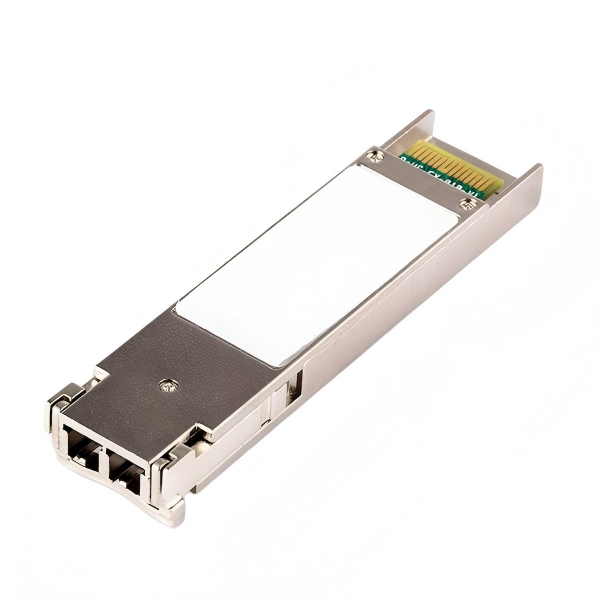

10G XFP LR Transceiver SMF 1310nm 10km
LG-XFP-10G-SM13-LDC-10
Product Overview
10G XFP Module, single mode 1310nm, duplex LC connector, 10km, with DDM, 0~+70℃
Product Information
Product Details
Feature
Supports 9.95Gbps to 11.1Gbps bit rates.
1310nm DFB laser transmitter and PIN photodiode.
Up to 10km transmission distance over 9/125µm OS2 SM fiber.
Supporting Digital Diagnostic Monitoring（DDM).
Hot-pluggable XFP footprint.
No reference clock required.
XFI and lineside loopback Mode Supported.
RoHS compliant (lead free).
Metal enclosure, for lower EMI.
Application
10GBASE-LR/LW 10G Ethernet
10G Fiber Channel
10G Data Center Switches and Routers.
SONET OC-192, SDH STM S-64
Specification
Model | LG-XFP-10G-SM13-LDC-10 |
Data rate | 10Gbps |
Wavelength | 1310nm |
Fiber mode type | Single mode |
Max transfer distance | 10km |
Connector type | Duplex LC |
TX power | -6~0dBm |
RX sensitivity | <-12.6dBm |
Power supply | +3.3V |
Max power dissipation | 1.5W |
Operating Temp | 0~+70℃ |
Protocol | XFP MSA, IEEE 802.3ae |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-XFP-10G-SM13-LDC-10 | 10G XFP LR Transceiver SMF 1310nm 10km | In Stock |
