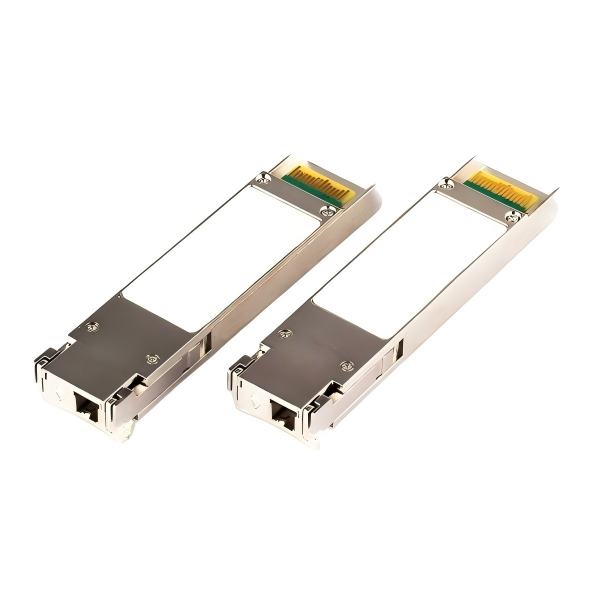

10G XFP BiDi Transceiver WDM 1270nm 1330nm 20km
LG-XFP-10G-SX73-LDC-20
Product Overview
10G XFP Module, WDM, TX1270nm RX1330nm, simplex LC connector, 20km, with DDM, 0~+70℃
Product Information
Product Details
Feature
Use only one fiber for transmission and reception (BiDi).
Supports 9.95Gbps to 10.5Gbps bit rates.
Up to 20km transmission distance over 9/125µm OS2 SM fiber.
Supporting Digital Diagnostic Monitoring（DDM).
Hot-pluggable XFP footprint.
No reference clock required.
XFI and lineside loopback Mode Supported.
RoHS compliant (lead free).
Metal enclosure, for lower EMI.
Specification
Model | LG-XFP-10G-SX73-LDC-20 | LG-XFP-10G-SX37-LDC-20 |
Data rate | 10Gbps | 10Gbps |
Wavelength | TX 1270nm RX 1330nm | TX 1330nm RX 1270nm |
Fiber mode type | Single mode | Single mode |
Max transfer distance | 20km | 20km |
Connector type | Simplex LC | Simplex LC |
TX laser type | DFB BiDi | DFB BiDi |
Receiver type | PIN | PIN |
TX power | -2~+2dBm | -2~+2dBm |
RX sensitivity | <-14dBm | <-14dBm |
Power supply | +3.3V | +3.3V |
Max power dissipation | 2W | 2W |
Operating Temp | 0~+70℃ | 0~+70℃ |
Protocol | XFP MSA, IEEE 802.3ae | XFP MSA, IEEE 802.3ae |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-XFP-10G-SX73-LDC-20 | 10G XFP BiDi Transceiver WDM 1270nm 1330nm 20km | In Stock |
