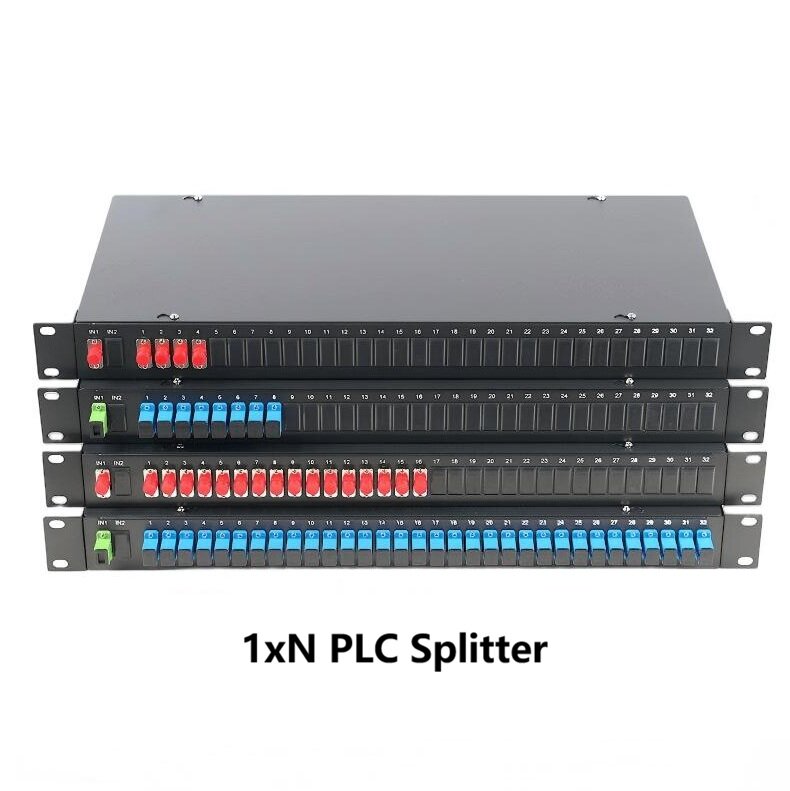

1xN Rack-mounted Type PLC Splitter
LG-OBD-PLC-R132
Product Overview
PLC splitter, 1x2, 1x4 , 1x8, 1x16, 1x32 , 1x64, 1x128 are available
Product Information
Product Details
Specification
Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1x128 |
Operating Wave | 1260nm~1650nm |
| |||||
Max IL (dB) | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21 | 24.2 |
Min RL (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Max Uniformity (dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Connector Type | SC or FC, UPC or APC | ||||||
Housing material | Cold-rolled steel sheet | ||||||
Temperature | -40~+85°C | ||||||
Ordering Information
Model | Description |
LG-OBD-PLC-R102 | 1:2 PLC Splitter, 19inch rack-mounted type |
LG-OBD-PLC-R104 | 1:4 PLC Splitter |
LG-OBD-PLC-R108 | 1:8 PLC Splitter |
LG-OBD-PLC-R116 | 1:16 PLC Splitter |
LG-OBD-PLC-R132 | 1:32 PLC Splitter |
LG-OBD-PLC-R164 | 1:64 PLC Splitter |
LG-OBD-PLC-R1128 | 1:128 PLC Splitter |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OBD-PLC-R132 | 1xN Rack-mounted Type PLC Splitter | In Stock |
