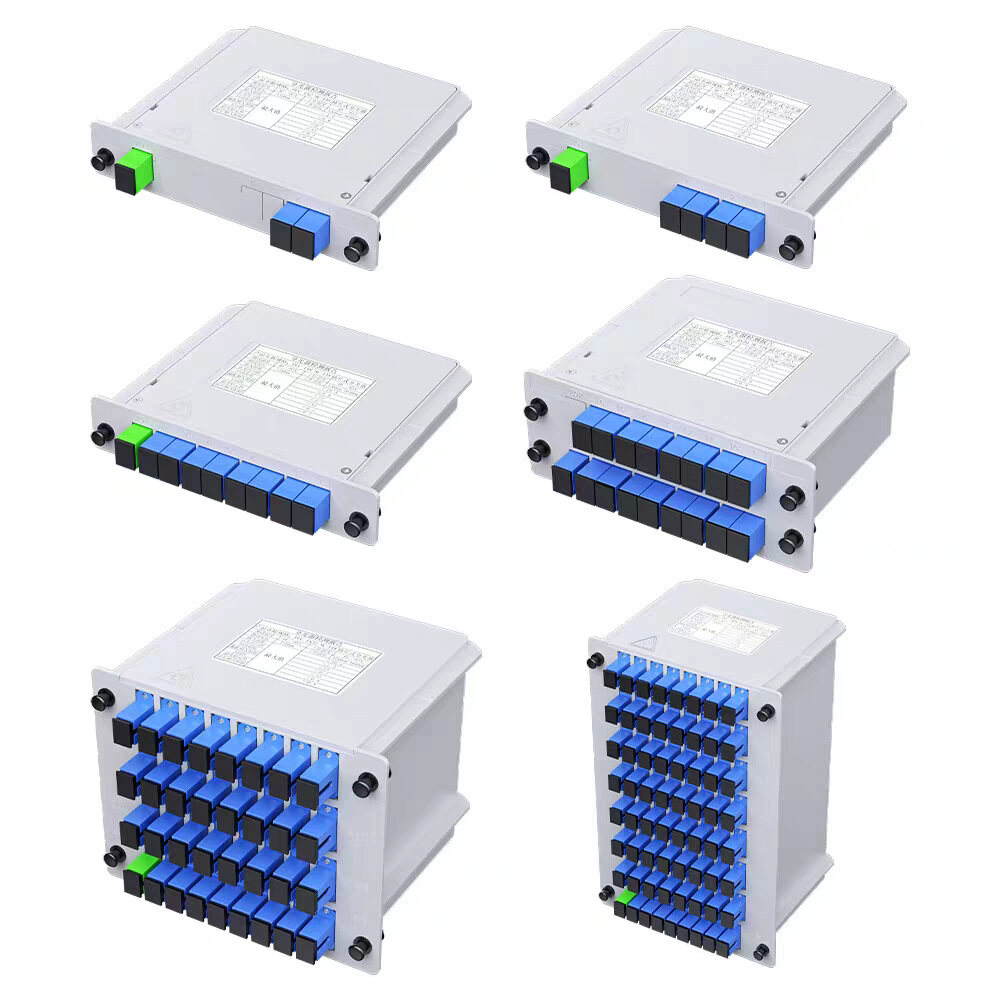

1xN Cassette Type PLC Splitter
LG-OBD-PLC-C116
Product Overview
Card type PLC splitter, 1x2, 1x4 , 1x8, 1x16, 1x32 , 1x64 are available
Product Information
Product Details
Specification
Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
Operating Wave | 1260nm~1650nm | |||||
Max IL (dB) | 3.5 | 7.5 | 10.5 | 13.5 | 16.5 | 20.5 |
Min RL (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Max Uniformity (dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Dimension (mm) | 130*100*25 | 130*100*50 | 130*100*100 | 130*100*200 | ||
Connector Type | SC or FC, UPC or APC | |||||
Tray material | ABS | |||||
Temperature (°C) | -40~+85°C | |||||
Ordering Information
LG-OBD-PLC-C102 | 1:2 PLC Splitter, Cassette type. |
LG-OBD-PLC-C104 | 1:4 PLC Splitter |
LG-OBD-PLC-C108 | 1:8 PLC Splitter |
LG-OBD-PLC-C116 | 1:16 PLC Splitter |
LG-OBD-PLC-C132 | 1:32 PLC Splitter |
LG-OBD-PLC-C164 | 1:64 PLC Splitter |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OBD-PLC-C116 | 1xN Cassette Type PLC Splitter | In Stock |
