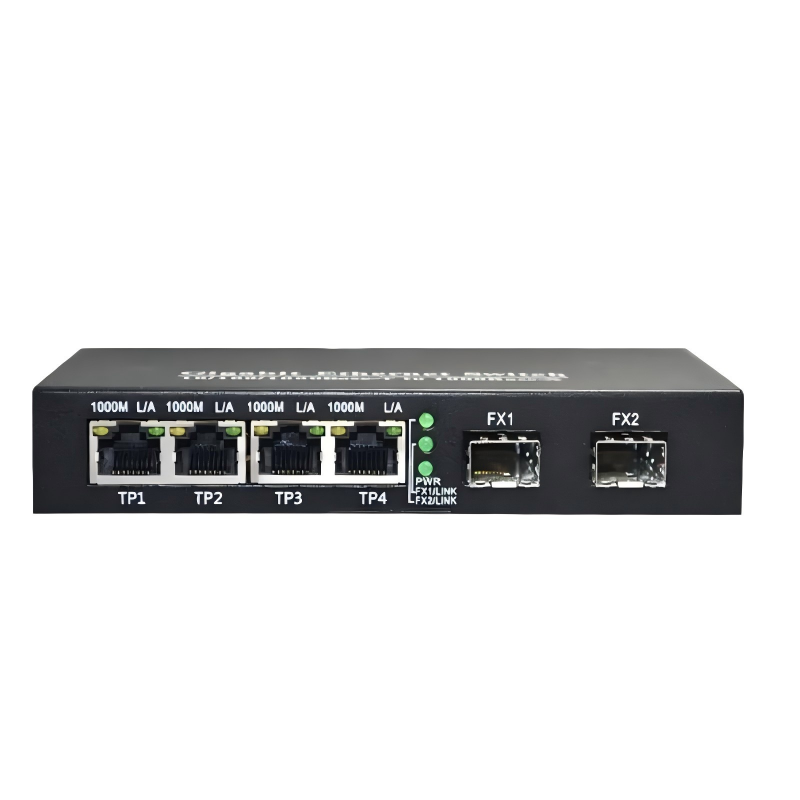

4-Port Gigabit Ethernet to 2-Port Fiber Media Converter
LG-MC-GE-4TX2FX-SFP
Product Overview
10/100/1000M fiber media converter with four UTP RJ45 port and two SFP slot, It extends the network transmission distance up to 120km over single mode fiber by SFP module.
Product Information
Product Details
Description
The fiber switch has 4-ports 10/100/1000M UTP ports and 2-ports 1000M SFP slot. End user can choose different 1000M SFP module according to his demand, such as 1000Base-T,1000Base-SX or 1000Base-LX etc. It extends the network transmission range up to 120km over single mode fiber by SFP module. The fiber switch is widely applied in small or medium Optical Fiber Ethernet network.
Feature
Plug-and-Play installation.
Supports VLAN and QoS.
Supports max 1536 bytes frame.
Switching mode: store-and-forward
Brings buffer 2MB and 16K MAC address.
Switching capacity 12G.
In conformity with safety code of FCC, CE and RoHS.
Specification
Ethernet Interface | Connector type | UTP RJ45 connector |
Data rate | 10/100/1000Base-T, Full/half duplex self-adaptive Auto-MDI/MDIX | |
Cable type | Cat5 UTP or better | |
Max transfer distance | 100 meters | |
Optic Interface (SFP slot) | Data rate: 1000Mbps, full duplex mode | |
Connector, wavelength, fiber mode type and transmission distance depend on SFP module using. | ||
Power supply | External power supply (default): Input DC5V, come with AC/DC power adapter Option I: DC-48V, range DC-36V~DC-72C Option II: AC220V, range AC100V~AC240V | |
Power Consumption: ≤4W | ||
Power adapter standard: EU, US, UK, AU (option) | ||
Environment condition | Operating temp: 0°C~+55°C Storage temp: -45°C~+80°C Relative temperature: 95% (uncondensed) | |
Dimension | 125mm (L) × 83mm (W) × 26mm (H) | |
Protocol | IEEE802.3ab (1000BaseT-T) IEEE802.3z (1000Base-FX) IEEE802.3d Spanning Tree standard IEEE802.1Q VLAN IEEE802.3X full/half duplex flow control | |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-MC-GE-4TX2FX-SFP | 4-Port Gigabit Ethernet to 2-Port Fiber Media Converter | In Stock |
