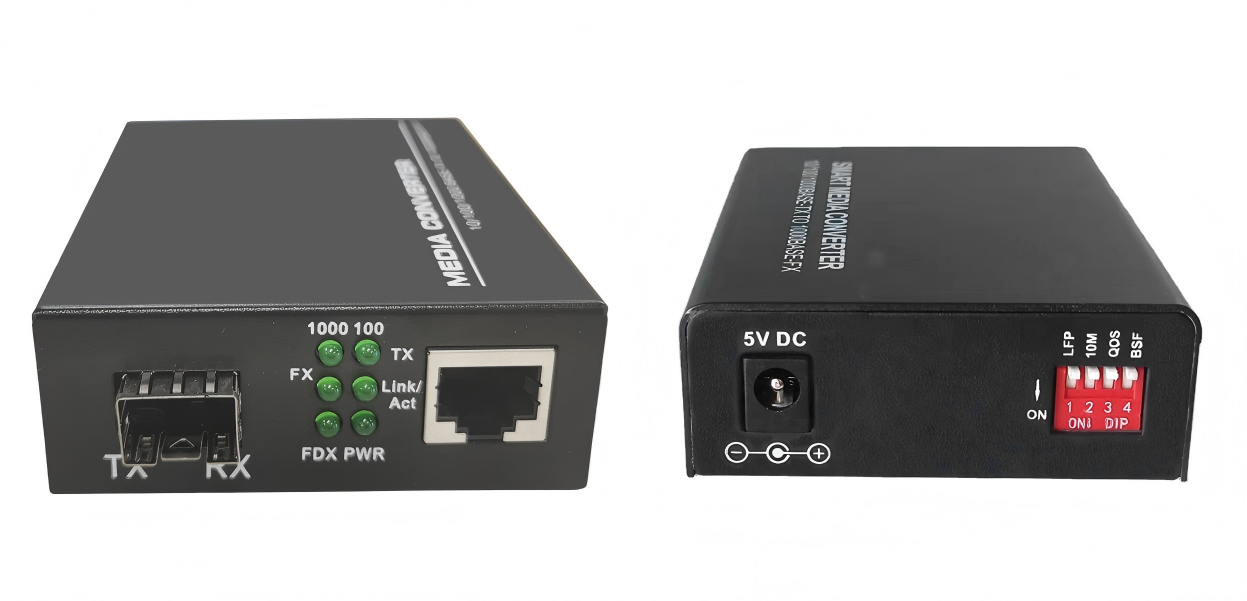

1000Mbps Ethernet to SFP LFP Fiber Media Converter
LG-MC-GE-LFP-SFP
Product Overview
10/100/1000M fiber media converter with one UTP RJ45 port and one SFP slot, support LFP (DIP Switch) function, It extends the network transmission distance up to 120km over single mode fiber by SFP module.
Product Information
Product Details
Description
The gigabit media converter can convert the electric signal of 10M/100M/1000M twisted pair and the optical signal of 1000Base-FX/LX. It extends the network transmission range up to 120km over single mode fiber by SFP module. The fiber media converter is an economical solution to achieve long distance transmission based on traditional networking equipment.
Feature
Provide one 10/100/1000M electrical Ethernet port and one SFP port.
Support LLR (Link Loss Return) for FX Port.
Support LFP function (Link fault pass through).
Provide DIP switch to set LFP function.
Supports IEEE 802.1Q Tag VLAN pass thru.
2K MAC address.
MTBF of more than 10,0000 hours.
Cache capacity 1M Bits.
Plug-and-Play installation.
In conformity with safety code of FCC, CE and RoHS.
Specification
| Connector type | UTP RJ45 |
Ethernet Interface | Data rate | 10/100/1000Mbps Full/half duplex self-adaptive Auto-MDI/MDIX |
Cable type | Cat5 UTP or better | |
Max transfer distance | 100 meters | |
Optic Interface (SFP slot) | Data rate: 1000Mbps, full duplex mode | |
Connector, wavelength, fiber mode type and transmission distance depend on SFP module using. | ||
Power supply | External power supply (default): Input DC5V, come with AC/DC power adapter Option I: DC-48V, range DC-36V~DC-72C Option II: AC220V, range AC100V~AC240V | |
Power Consumption: ≤3W | ||
Power adapter standard: EU, US, UK, AU (option) | ||
Environment condition | Operating temp: 0℃~+55℃ Storage temp: -45℃~+80℃ Relative temperature: 95% (uncondensed) | |
Dimension | 95mm (L) × 70mm (W) × 26mm (H) | |
Protocol | IEEE802.3u (10Base-T, 100Base-TX) IEEE802.3ab (1000BaseT-T) IEEE802.3z (1000Base-FX) IEEE 802.1Q VLAN IEEE802.3d Spanning Tree standard IEEE802.3X full/half duplex flow control | |
Ordering Information
Model | Description |
LG-MC-GE-LFP-SFP | 10/100/1000M fiber media converter, one UTP port, one SFP slot, support LFP (DIP Switch) function, external power supply DC48V or AC220V. |
Note: SFP module need order additionally.
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-MC-GE-LFP-SFP | 1000Mbps Ethernet to SFP LFP Fiber Media Converter | In Stock |
