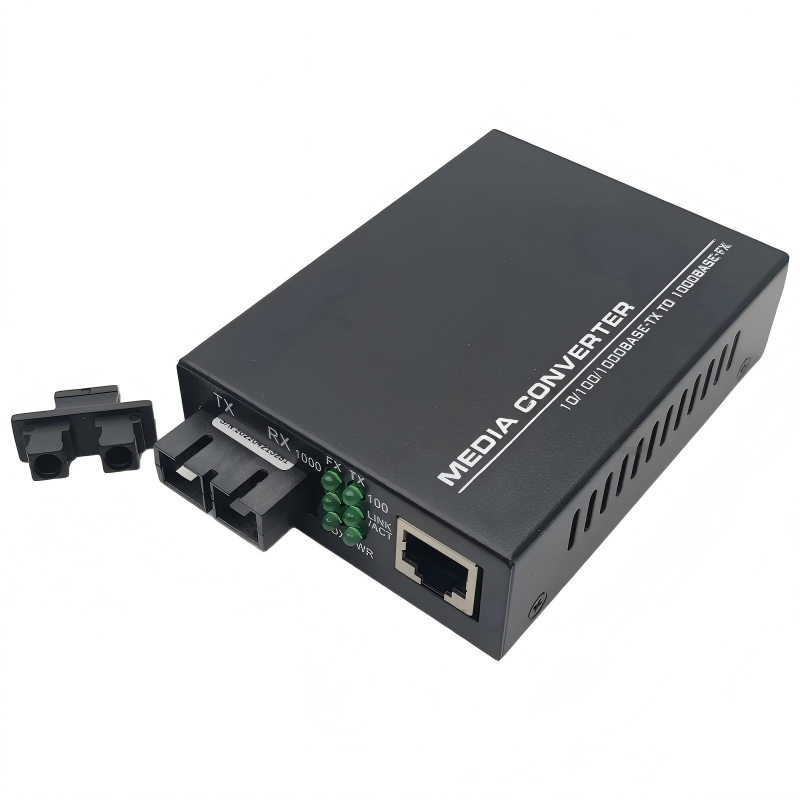

1000Mbps Ethernet to Fiber Media Converter
LG-MC-GE-SM13-20
Product Overview
10/100/1000M fiber media converter, one UTP RJ45 port, one fiber port with dual core fiber MM or SM wavelength, up to 120km, SC/FC/ST connector are optional.
Product Information
Product Details
Description
The gigabit media converter can convert the electric signal of 10M/100M/1000M twisted pair and the optical signal of 1000Base-FX/LX. It extends the network transmission range up to 120km over single mode fiber. The fiber media converter is an economical solution to achieve long distance transmission based on traditional networking equipment.
Feature
Provide one 10/100/1000M electrical Ethernet port and one fiber port.
Built-in MAC address buffer space 1K.
MTBF of more than 10,0000 hours.
Bit Error Rate (BER) < 1E-8
Cache capacity 1M Bits.
In conformity with safety code of FCC, CE and RoHS.
Specification
Optic Interface | Connector type | Duplex SC (default) FC, ST, LC are optional |
Data rate | 1000Mbps full duplex mode | |
Wavelength | 850nm, 1310nm, 1550nm (can be chosen by customer) | |
Fiber category | MM: 50/125um, 62.5/125um SM: 9/125um | |
Transmission distance | MM: 550m @850nm MM: 2km @1300nm SM: 10km~60km @1310nm SM: 60km~120km@1550nm | |
Ethernet Interface | Connector type | UTP RJ45 |
Data rate | 10/100/1000Mbps Full/half duplex self-adaptive Auto-MDI/MDIX | |
Cable type | Cat5 UTP or better | |
Max transfer distance | 100 meters | |
Power supply | External power supply (default): Input DC5V, come with AC/DC power adapter Option I: DC-48V, range DC-36V~DC-72C Option II: AC220V, range AC100V~AC240V | |
Built-in power supply (option): AC 100 ~ 240V, 50~60Hz | ||
Power Consumption: ≤3W | ||
Power adapter standard: EU, US, UK, AU (option) | ||
Environment condition | Operating temp: 0℃~+55℃ Storage temp: -45℃~+80℃ Relative temperature: 95% (uncondensed) | |
Dimension | External power supply: 95 (L) × 70 (W) × 26 (H) Built-in power supply: 140 (L) × 110 (W) × 30 (H) | |
Protocol | IEEE802.3u (10Base-T, 100Base-TX) IEEE802.3ab (1000BaseT-T) IEEE802.3z (1000Base-FX) IEEE802.3d Spanning Tree standard IEEE802.3X full/half duplex flow control | |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-MC-GE-SM13-20 | 1000Mbps Ethernet to Fiber Media Converter | In Stock |
