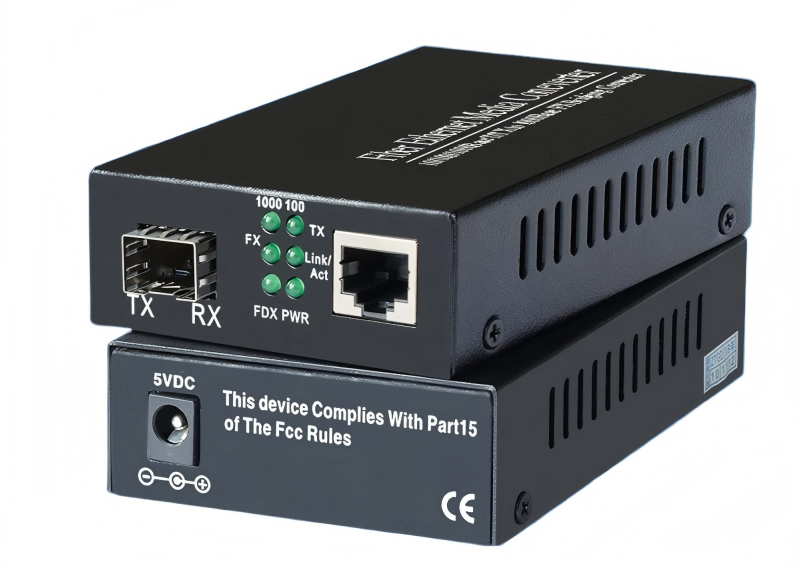

1000Mbps Ethernet to SFP Fiber Media Converter
LG-MC-GE-SFP
Product Overview
10/100/1000M fiber media converter with one UTP RJ45 port and one SFP slot, It extends the network transmission distance up to 120km over single mode fiber by SFP module.
Product Information
Product Details
Description
The gigabit media converter can convert the electric signal of 10M/100M/1000M twisted pair and the optical signal of 1000Base-FX/LX. It extends the network transmission range up to 120km over single mode fiber by SFP module. The fiber media converter is an economical solution to achieve long distance transmission based on traditional networking equipment.
Feature
Provide one 10/100/1000M electrical Ethernet port and one SFP port.
Plug-and-Play installation.
Built-in MAC address buffer space 1K.
MTBF of more than 10000 hours.
Bit Error Rate (BER) < 1E-8
Cache capacity 1M Bits.
In conformity with safety code of FCC, CE and RoHS.
Specification
| Connector type | UTP RJ45 |
Ethernet Interface | Data rate | 10/100/1000Mbps Full/half duplex self-adaptive Auto-MDI/MDIX |
Cable type | Cat5 UTP or better | |
Max transfer distance | 100 meters | |
Optic Interface (SFP slot) | Data rate: 1000Mbps, full duplex mode | |
Connector, wavelength, fiber mode type and transmission distance depend on SFP module using. | ||
Power supply | External power supply (default): Input DC5V, come with AC/DC power adapter Option I: DC-48V, range DC-36V~DC-72C Option II: AC220V, range AC100V~AC240V | |
Built-in power supply (option): AC 100 ~ 240V, 50~60Hz | ||
Power Consumption: ≤3W | ||
Power adapter standard: EU, US, UK, AU (option) | ||
Environment condition | Operating temp: 0℃~+55℃ Storage temp: -45℃~+80℃ Relative temperature: 95% (uncondensed) | |
Dimension | External power supply: 95 (L) × 70 (W) × 26 (H) Built-in power supply: 140 (L) × 110 (W) × 30 (H) | |
Protocol | IEEE802.3u (10Base-T, 100Base-TX) IEEE802.3ab (1000BaseT-T) IEEE802.3z (1000Base-FX) IEEE802.3d Spanning Tree standard IEEE802.3X full/half duplex flow control | |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-MC-GE-SFP | 1000Mbps Ethernet to SFP Fiber Media Converter | In Stock |
