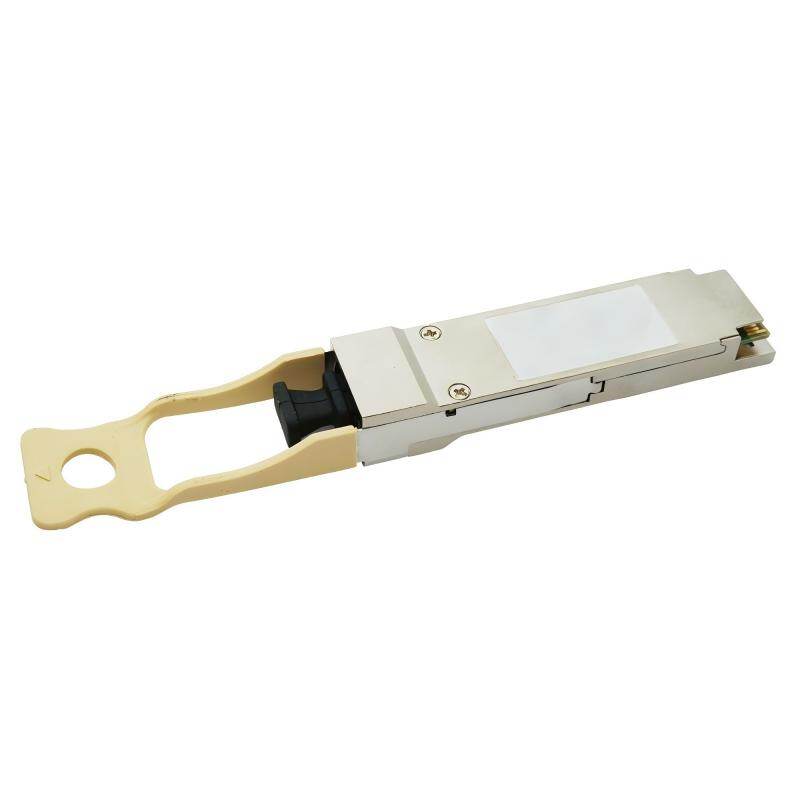

40G QSFP SR4 Transceiver MMF 850nm
LG-QSFP-40G-MM85-PDC
Product Overview
40Gbps QSFP SR4 Module, Multi-mode, 850nm, MPO/MTP connector, with DDM, 0~+70℃
Product Information
Model: LG-QSFP-40G-MM85-PDC
Status: In Stock
Product Details
Specification
Model | LG-QSFP-40G-MM85-PDC |
Data rate | ≤41.25Gbps (4x 10.3125Gbps) |
Wavelength | 850nm |
Fiber type | Multi-mode |
Transfer distance | ≤100m@OM3; ≤150m@OM4 |
Laser type | TX VCSEL; RX PIN |
Connector type | MPO/MTP-12 |
TX power | -7.6~-2.4dBm |
RX sensitivity | ≤-9.5dBm |
Power supply | +3.3V |
Power dissipation | ≤1.5W |
DDM function | Support |
Operating Temp | 0~+70℃ |
Standard | 40G Ethernet, IEEE 802.3ba, Infiniband QDR SATA/SAS3, SFF-8436, QSFP+MSA, RoHS6, CE |
Application | 40GBASE-SR4 40G Ethernet Data Center and LAN |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-QSFP-40G-MM85-PDC | 40G QSFP SR4 Transceiver MMF 850nm | In Stock |
