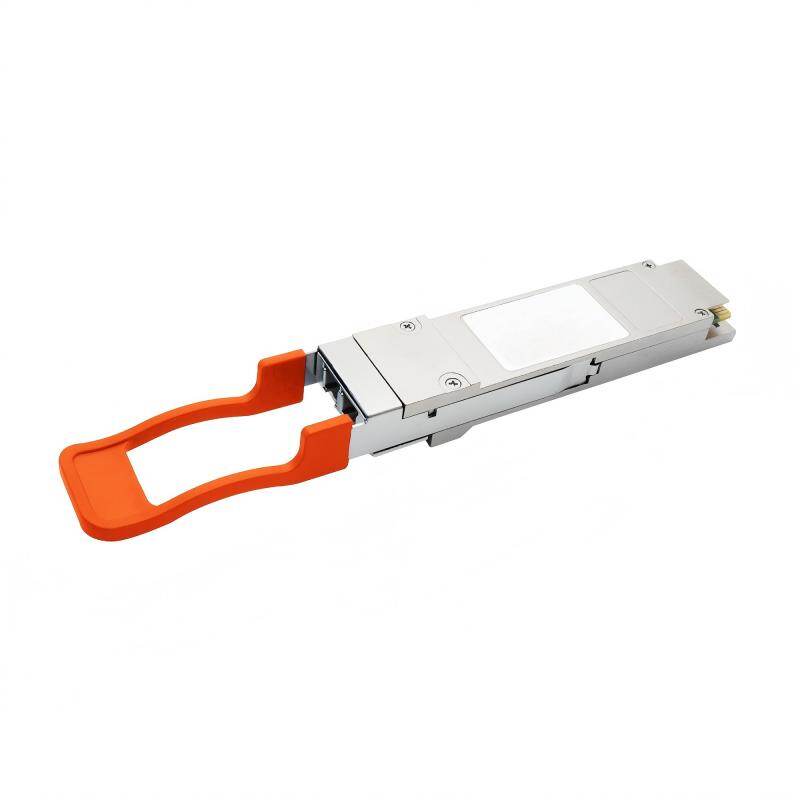

100G QSFP28 ER4 Transceiver SMF 40km
LG-QSFP28-100G-SM-LDC-40
Product Overview
100Gbps QSFP28 ER4 Module, single mode, 1270nm~1330nm, 40KM, duplex LC connector, with DDM, 0~+70℃
Product Information
Model: LG-QSFP28-100G-SM-LDC-40
Status: In Stock
Product Details
Specification
Model | LG-QSFP28-100G-SM-LDC-40 |
Data rate | ≤103.125Gbps (4x25.78Gbps) |
Wavelength | 1310nm (1270nm~1330nm for option) |
Fiber type | Single mode, 9/125µm OS2 fiber |
Transfer distance | ≤40km |
Laser type | TX: LAN WDM EML RX: APD |
Connector type | Duplex LC |
TX power | +2~+3dBm |
Receiver sensitivity | -18dBm |
Power supply | +3.3V |
Power dissipation | ≤2.5W |
DDM function | Support |
CDR | TX/RX built-in |
Operating Temp | 0~+70℃ |
Standard | QSFP28 MSA, IEEE 802.3bm, RoHS6 |
Application | 100GBASE-ER4 100G Ethernet 40GBASE-ER4 40G Ethernet |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-QSFP28-100G-SM-LDC-40 | 100G QSFP28 ER4 Transceiver SMF 40km | In Stock |
