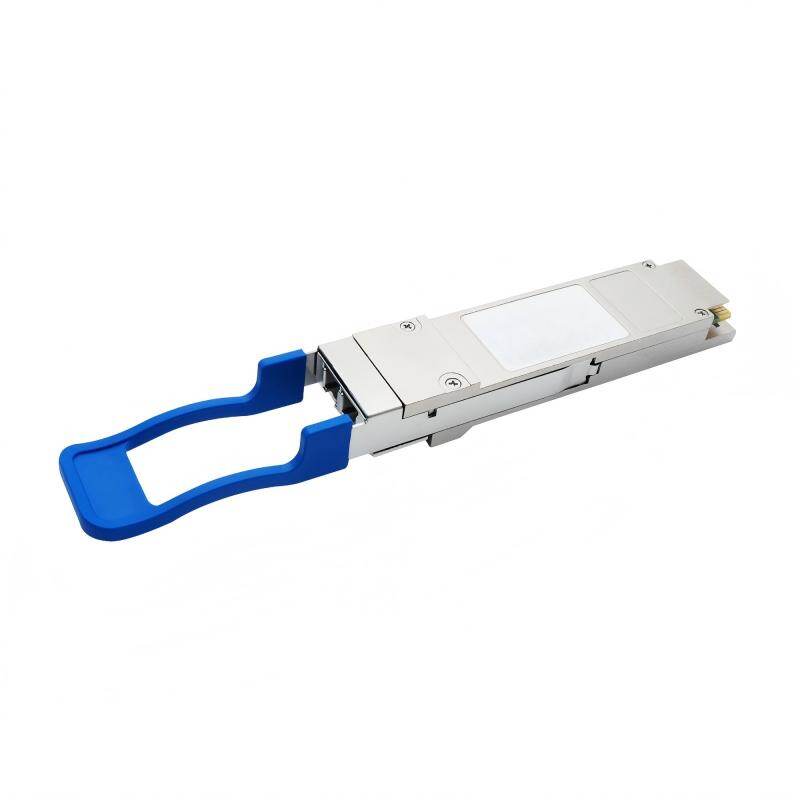

40G QSFP LR4 Transceiver SMF 1310nm 10km
LG-QSFP-40G-SM13-PDC-10
Product Overview
40Gbps QSFP LR4 Module, single mode, 1310nm, MPO/MTP or duplex LC connector, with DDM, 0~+70℃
Product Information
Product Details
Specification
Model | LG-QSFP-40G-SM13-LDC-10 | LG-QSFP-40G-SM13-PDC-10 |
Data rate | ≤44.6Gbps (4X11.2Gbps) | |
Wavelength | 1310nm | |
Fiber type | Single mode, 9/125µm OS2 fiber | |
Transfer distance | ≤10km | |
Laser type | TX: DFB CWDM RX: PIN | TX: DFB RX: PIN |
Connector type | Duplex LC | MPO/MTP-12 |
TX power | -7.5~-2.5dBm | -7.5~-2.5dBm |
Receiver sensitivity | -13.5dBm | -12.6dBm |
Power supply | +3.3V | |
Power dissipation | ≤3.5W | ≤2.5W |
DDM function | Support | |
Operating Temp | 0~+70℃ | |
Standard | 40G Ethernet IEEE 802.3ba 40GBASE-LR4 Infiniband QDR/DDR QSFP+MSA RoHS | 40G Ethernet IEEE 802.3ba 40GBASE-LR4 QSFP+MSA RoHS |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-QSFP-40G-SM13-PDC-10 | 40G QSFP LR4 Transceiver SMF 1310nm 10km | In Stock |
