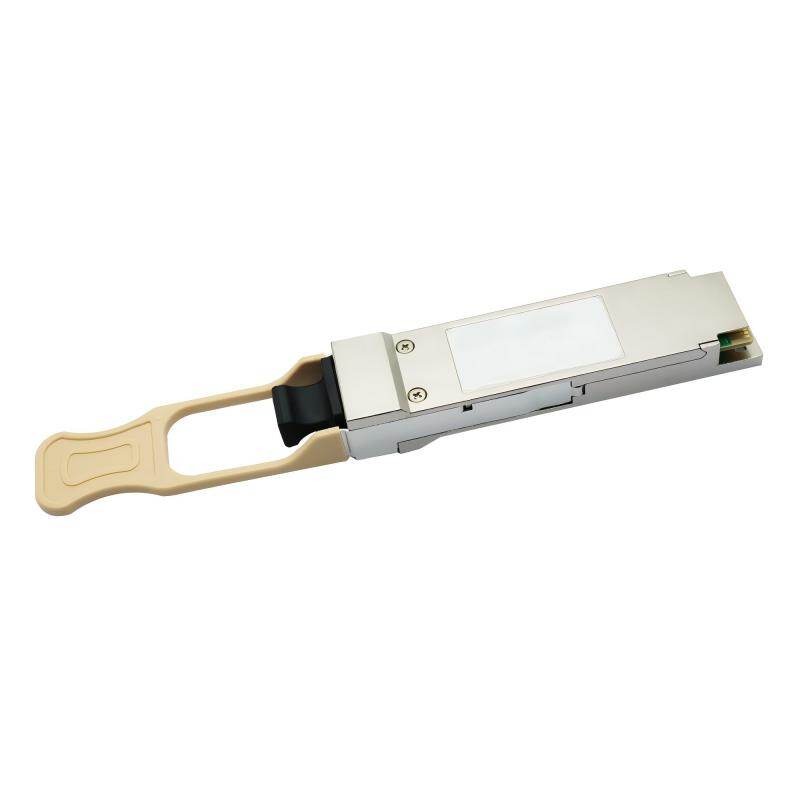

100G QSFP28 SR4 Transceiver MMF 850nm
LG-QSFP28-100G-MM85-PDC
Product Overview
100Gbps QSFP28 SR4 Module, Multi-mode, 850nm, MPO/MTP connector, with DDM, 0~+70℃
Product Information
Model: LG-QSFP28-100G-MM85-PDC
Status: In Stock
Product Details
Specification
Model | LG-QSFP28-100G-MM85-PDC |
Data rate | ≤103.125Gbps (4x 25.78Gbps) |
Wavelength | 850nm |
Fiber type | Multi-mode |
Transfer distance | ≤70m@OM3; ≤100m@OM4 |
Laser type | TX VCSEL; RX PIN |
Connector type | MPO/MTP-12 |
TX power | -8.4~-2.4dBm |
RX sensitivity | ≤-10.3dBm |
Power supply | +3.3V |
Power dissipation | ≤2.5W |
DDM function | Support |
Operating Temp | 0~+70℃ |
Standard | QSFP28 MSA, IEEE 802.3bm, RoHS6 |
Application | IEEE 802.3bm, 100GBASE SR4 40 Gigabit Ethernet, Infiniband FDR/EDR |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-QSFP28-100G-MM85-PDC | 100G QSFP28 SR4 Transceiver MMF 850nm | In Stock |
