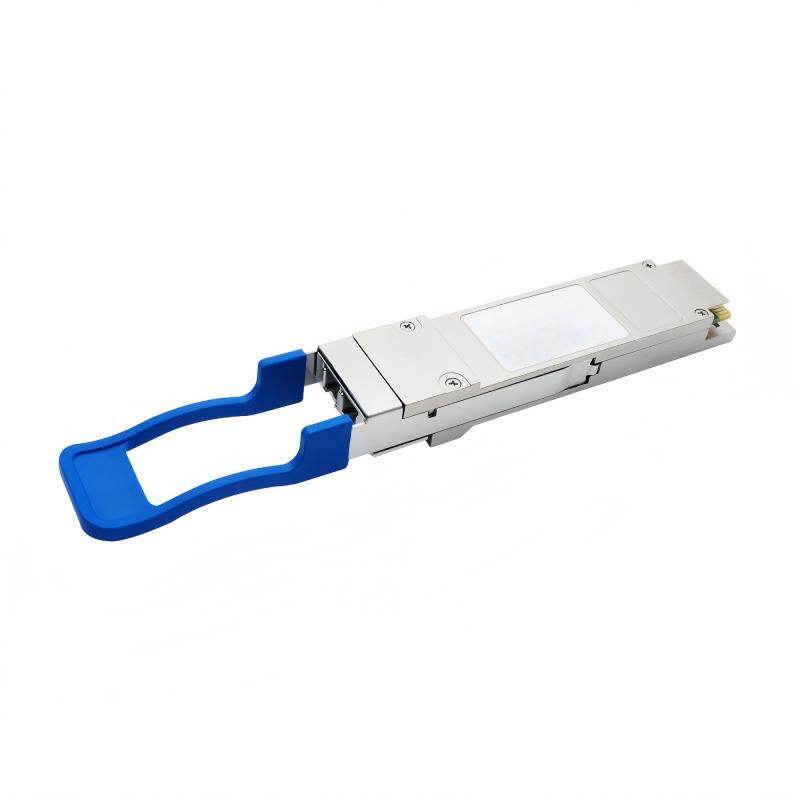

100G QSFP28 LR4 Transceiver SMF 10km
LG-QSFP28-100G-SM-LDC-10
Product Overview
100Gbps QSFP28 LR4 Module, single mode, 1270nm~1330nm, duplex LC connector, with DDM, 0~+70℃
Product Information
Model: LG-QSFP28-100G-SM-LDC-10
Status: In Stock
Product Details
Specification
Model | LG-QSFP28-100G-SM-LDC-10 |
Data rate | ≤103.125Gbps (4x25.78Gbps) |
Wavelength | 1270nm~1330nm |
Fiber type | Single mode, 9/125µm OS2 fiber |
Transfer distance | ≤10km |
Laser type | TX: LAN WDM DFB RX: PIN |
Connector type | Duplex LC |
TX power | -4.3~+4.5dBm |
Receiver sensitivity | -8.6dBm |
Power supply | +3.3V |
Power dissipation | ≤4W |
DDM function | Support |
Operating Temp | 0~+70℃ |
Standard | QSFP28 MSA, 100GBASE-LR4, IEEE 802.3ba IEEE 802.3bm CAUI-4, RoHS6 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-QSFP28-100G-SM-LDC-10 | 100G QSFP28 LR4 Transceiver SMF 10km | In Stock |
