Spiral Vibration Damper
LG-SVD-1170/1300
Product Overview
Spiral vibration damper is widely used in ADSS cable installation.
Product Information
Product Details
Description

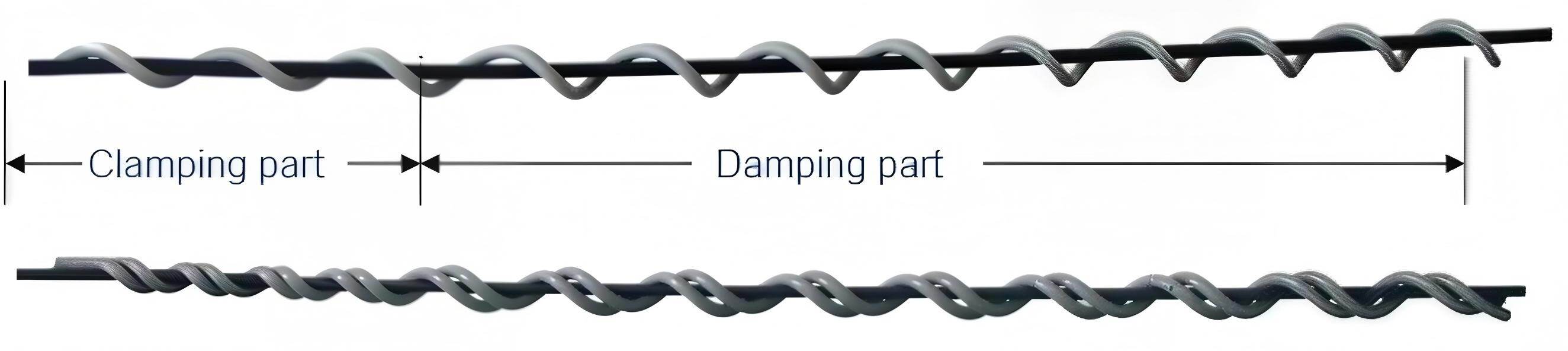

Spiral vibration damper is made of engineering plastic which is high strength, aging resistance and high elastic, it will not cause any mechanical damage to optical fiber cables. Spiral vibration damper is widely used in ADSS cable installation. Each vibration damper is composed of a short part of the clamping section and a long vibration attenuation section. The clamping section can effectively close upon the cable to make sure the vibration damper is firmly fixed on the cable, the vibration attenuation section creates a damping effect through mutual crash with the cable, to consume the cable vibration energy, so that the aeolian vibration on the cable can be weakened.
Model | LG-SVD-1170/1300 | LG-SVD-1500/1350 | LG-SVD-1930/1670 |
Cable OD range | 8.30-11.70 mm | 11.71~15.00 mm | 14.31~19.30 mm |
Clamping length | 250 mm | 250 mm | 330 mm |
Weight | 0.28 KG | 0.30 KG | 0.66 KG |
Total length | 1300 mm | 1350 mm | 1670 mm |
Recommend allocation of spiral vibration damper
Span (m) | <100 | 100-250 | 250-400 | 400-800 | 800-1000 |
Recommend qty of damper per span | 0 | 2 | 4 | 6 | 8 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SVD-1170/1300 | Spiral Vibration Damper | In Stock |
