OPGW ADSS Optical Splice Closure Metallic
LG-SSC-M48
Product Overview
cap-type designed, metallic optical splice closure for OPGW cables and ADSS cables, support up to 144 fiber cores.
Product Information
Product Details
Description

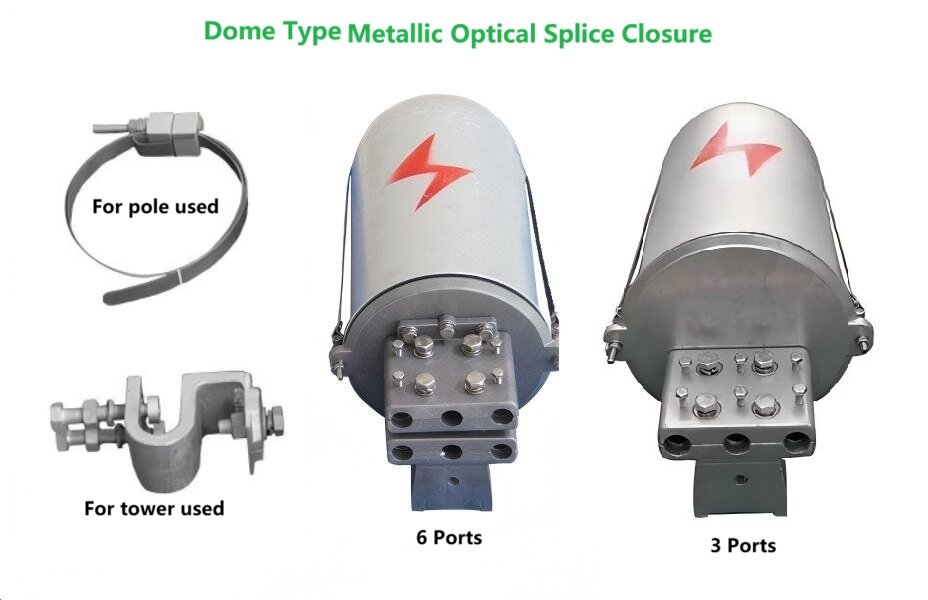

The Metallic splice closure is made of aluminum alloy and stainless steel, it delivers high mechanical strength and corrosion resistance for outdoor installations, with sealing rings and silicone providing protection against moisture, dust, UV rays, and environmental contaminants.
The cap-type design enables secure closure and tool-free access to internal optical fiber splice trays during maintenance, the enclosure withstands operational temperatures from -40°C to +60°C, atmospheric pressure from 70kPa to 106kPa, and seismic activities. Tensile strength exceeds 2000N, with sealing capabilities maintaining internal pressure stability and a service life beyond 25 years.
Applications include tower and pole installations at intermediate and terminal splicing points in overhead cable systems across telecommunications networks, data centers, and power distribution infrastructure. The joint box accommodates multiple cable configurations for network expansion and maintenance in environmentally challenging areas.
Specification
Installation location | Pole, tower |
Application cable | OPGW and ADSS cables |
Cable diameter | Max 22mm |
Fiber core capacity | Max 144 cores |
Cable Port | 2, 3, 4, 6 Ports (option) : 1*inlet+1*outlet; 1*inlet+2*outlet; 2*inlet+1*outlet, 2*inlet+2*outlet, 3*inlet+3*outlet |
Shell material | Aluminum alloy, IP68 |
Accessories | Installation kits for pole, for tower |
Ordering Information
Model | Description |
LG-SSC-M12 | 12 cores optical splice closure, metal type, with pole or tower installation kits |
LG-SSC-M24 | 24 cores optical splice closure |
LG-SSC-M48 | 48 cores optical splice closure |
LG-SSC-M72 | 72 cores optical splice closure |
LG-SSC-M96 | 96 cores optical splice closure |
LG-SSC-M144 | 144 cores optical splice closure |
Order Tips:
1. Please check the fiber core number, and the cable diameter.
2. Please check the number of input ports and output ports.
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SSC-M48 | OPGW ADSS Optical Splice Closure Metallic | In Stock |
