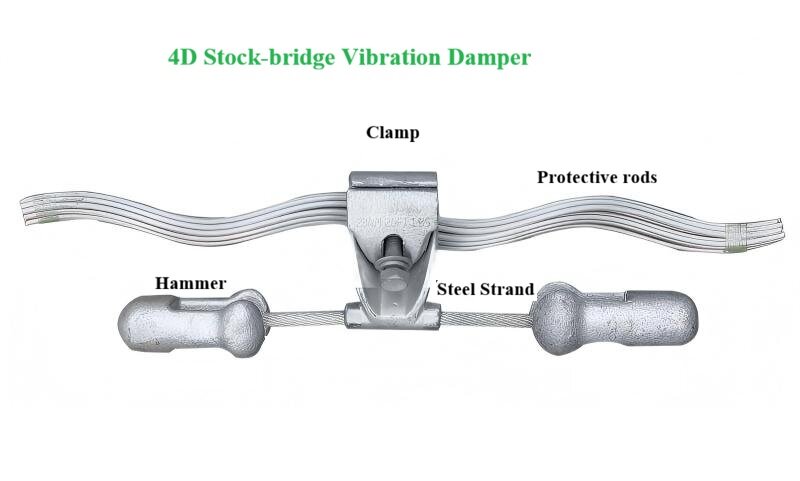

4D Type Stockbridge Vibration Damper
LG-VD-4D-20
Product Overview
The vibration damper can be installed on both OPGW and ADSS optical cables.
Product Information
Product Details
Specification
Model | LG-VD-4D-20 | LG-VD-4D-30 |
Clamping diameter range | 12~27 mm | 14~27 mm |
Clamp width | 52mm | 52mm |
Weight | 1.4 KG | 2.5KG |
Total length | 330mm | 383mm |
Recommend allocation of vibration damper for OPGW | ||||
Cable OD (mm) | Span (m) | |||
D＜12 | 100-300 | 300-600 | 600-900 |
|
12≤ D＜12 | 100-350 | 350-700 | 700-1000 | 1000-1200 |
Recommend qty of damper per span | 2 | 4 | 6 | 8 |
Recommend allocation of vibration damper for ADSS | ||||
Cable OD (mm) | Span | |||
D＜12 | 100-250 | 250-450 | 450-700 |
|
12≤D＜12 | 100-250 | 250-500 | 500-800 | 800-1000 |
Recommend qty of damper per span | 2 | 4 | 6 | 8 |
Note:
For safety reason, quantity of vibration damper would rather surpass than lack at critical span.
