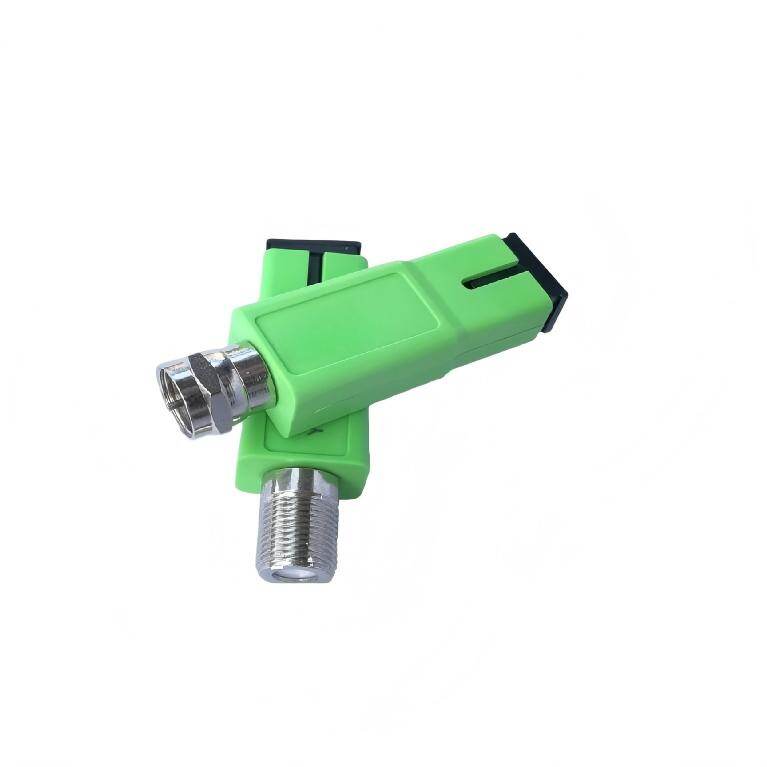

Mini Passive CATV Optical Receiver
LG-OR-P1000
Product Overview
Passive optical receiver, optical input power -15~+0dBm, RF Bandwidth 45~1000MHz, SC/APC
Product Information
Product Details
Specification
Optical Parameter | |
Wavelength | 1550nm |
Input Power Range | -15~0dBm |
Input Return loss | >45dB |
Interface | SC/APC |
RF Parameter | |
Bandwidth | 45~1000MHz |
F Connector type | Metric or imperial |
Impedance | 75Ω |
Output RF Level | 40 dBuV @ tested at -15dBm 50 dBuV @ tested at -10dBm 60 dBuV @ tested at -5dBm 64 dBuV @ tested at -3dBm 70 dBuV @ tested at 0dBm |
Flatness | 1.5dB |
Others | |
C/N, C/CTB, C/CSO | ≥51dB, ≥65dB, ≥62dB |
MER | >30dB @ tested at -15dBm optical input >35dB @ tested at -10dBm optical input >37dB @ tested at -5dBm optical input >37dB @ tested at -3dBm optical input >36dB @ tested at 0dBm optical input |
Weight | 30g |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OR-P1000 | Mini Passive CATV Optical Receiver | In Stock |
