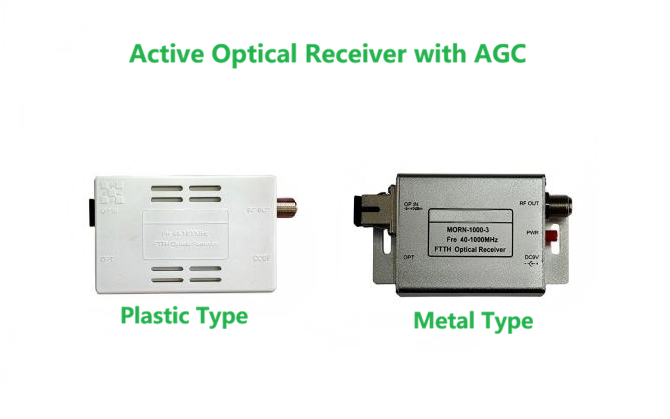

Active CATV Optical Receiver with AGC
LG-OR-AGC-P
Product Overview
Optical receiver with AGC range -10~0dBm, optical input power -18~+2dBm, RF Bandwidth 45~1000MHz, DC5V power supply, metal or plastic shell.
Product Information
Product Details
Specification
Optical Parameter | |
Wavelength | 1100nm~1600nm |
Input Power Range | -18~+2 dBm |
Input Return loss | >45dB |
Interface | SC/APC, FC/APC (optional) |
RF Parameter | |
Bandwidth | 45~1000MHz |
F Connector type | Metric or imperial |
Impedance | 75Ω |
Output RF Level | 82 ±1dBuV |
Flatness | ±0.5 dB @ 47~550MHz ±0.75 dB @ 550~750/862/1000MHz |
Others | |
AGC range | -10~0dBm |
C/N, C/CTB, C/CSO | ≥50dB, ≥65dB, ≥63dB |
MER | >33dB @ tested at-15dBm optical input >30dB @ tested at-18dBm optical input |
OPT Indicator | Red @ optical power <-9dBm Green @ optical power >-9dBm Orange @ optical power >+2dBm |
Power Supply | DC 5V with external power adapter |
Weight | 0.15KG @ Metal type 0.1KG @ Plastic type |
Environment condition | Operating Temp: -20℃~60℃ Storage Temp: -40℃~70℃ RH: 5%~90% |
Ordering Information
Model | Description |
LG-OR-AGC-M | Optical receiver with AGC range -10~0dBm, Optical input power -18~+2dBm, RF Bandwidth 45~1000MHz, DC5V power supply, metal shell |
LG-OR-AGC-P | Optical receiver with AGC range -10~0dBm, Optical input power -18~+2dBm, RF Bandwidth 45~1000MHz, DC5V power supply, plastic shell |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OR-AGC-P | Active CATV Optical Receiver with AGC | In Stock |
