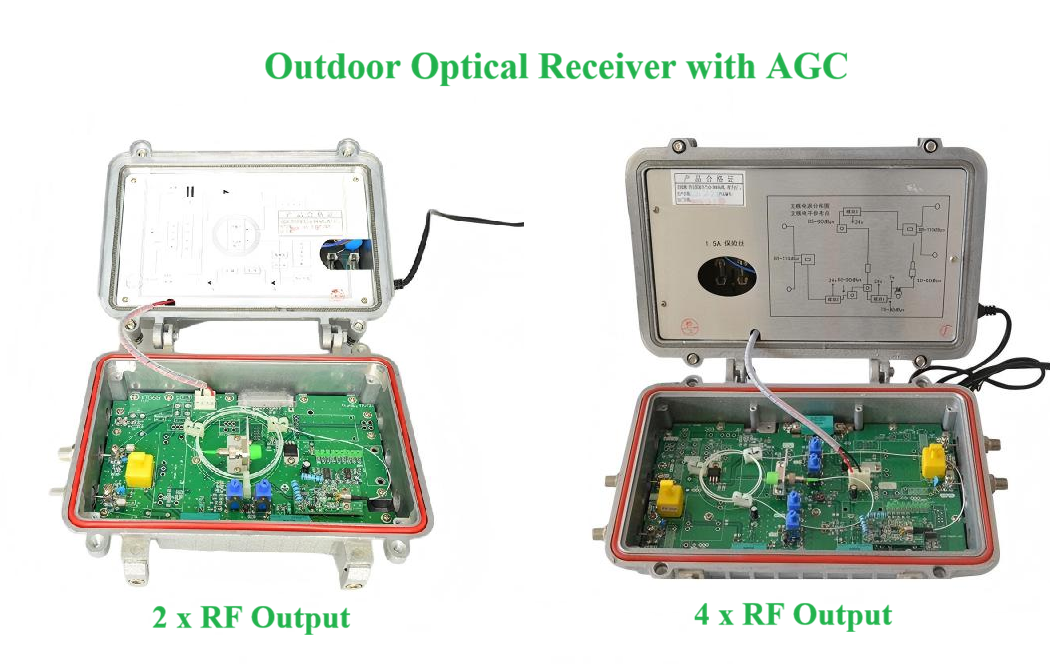

Outdoor CATV Optical Receiver with AGC
LG-OR-AGC-8602
Product Overview
Outdoor Optical receiver with AGC, 2 or 4 RF output ports, Optical input power -7~+2dBm, RF Bandwidth 45~862MHz.
Product Information
Product Details
Feature
High quality Aluminum alloy shell, waterproof level reaches IP65.
Dual shielding panel to ensure good EMC indicators.
Built-in AGC ensures stable signal output at all times.
Realize bidirectional transmission, can test RF voltage level without opening the cover.
Integrated WDM (1310nm/1490nm/1550nm) is optional.
Specification
Forward Optical Link Parameter | |
Wavelength | 1100nm~1600nm |
Input Power Range | -7~+2dBm (recommend -3dBm) |
Input Return Loss | ≥60dB |
Interface | SC/APC or FC/APC (optional) |
Fiber Type | SMF |
RF Parameter | |
Bandwidth | 47~862MHz |
Qty of output port | 2 or 4 (optional) |
F Connector type | Metric or imperial (optional) |
Impedance | 75Ω |
RF Output Return Loss | ≥16dB |
RF Output Level | ≥110dBuV |
In-band Flatness | < ±0.75dB |
Backward Transmission Parameter | |
Optical Wavelength | 1310nm±10 (1550nm is optional) |
Optical Connector | FC/APC or SC/APC (optional) |
Optical Output Power | 1~10mW |
Optical Link Responsivity (Sensitivity) | ≤ ±1.0dB |
RF Bandwidth Range | 5~30/42/65/85MHz (optional) |
RF In-band Flatness | < ±0.75dB |
RF Input Level | 80dBuV |
RF Return Loss | ≥16dB |
RF Impedance | 75Ω |
Others | |
C/N; C/CTB; C/CSO | ≥51dB; -66dB; -63dB |
Power Supply | Input AC 110~260V, rated voltage AC 220V Input AC 35~70V, rated voltage AC 60V |
Power Consumption | 12~15W @ OR with 2*RF Output 17~20W @ OR with 4*RF Output |
Dimension (mm) | 250*200*110 @ OR with 2*RF Output 330*230*130 @ OR with 4*RF Output |
Environment condition | Operating Temp: -40℃~60℃ Storage Temp: -40℃~70℃ RH: 5~95% |
Ordering Information
Model | Description |
LG-OR-AGC-8602 | Outdoor Optical receiver with AGC, 2*RF output ports, Optical input power -7~+2dBm, RF Bandwidth 45~862MHz. |
LG-OR-AGC-8604 | Outdoor Optical receiver with AGC, 4*RF output ports, Optical input power -7~+2dBm, RF Bandwidth 45~862MHz. |
