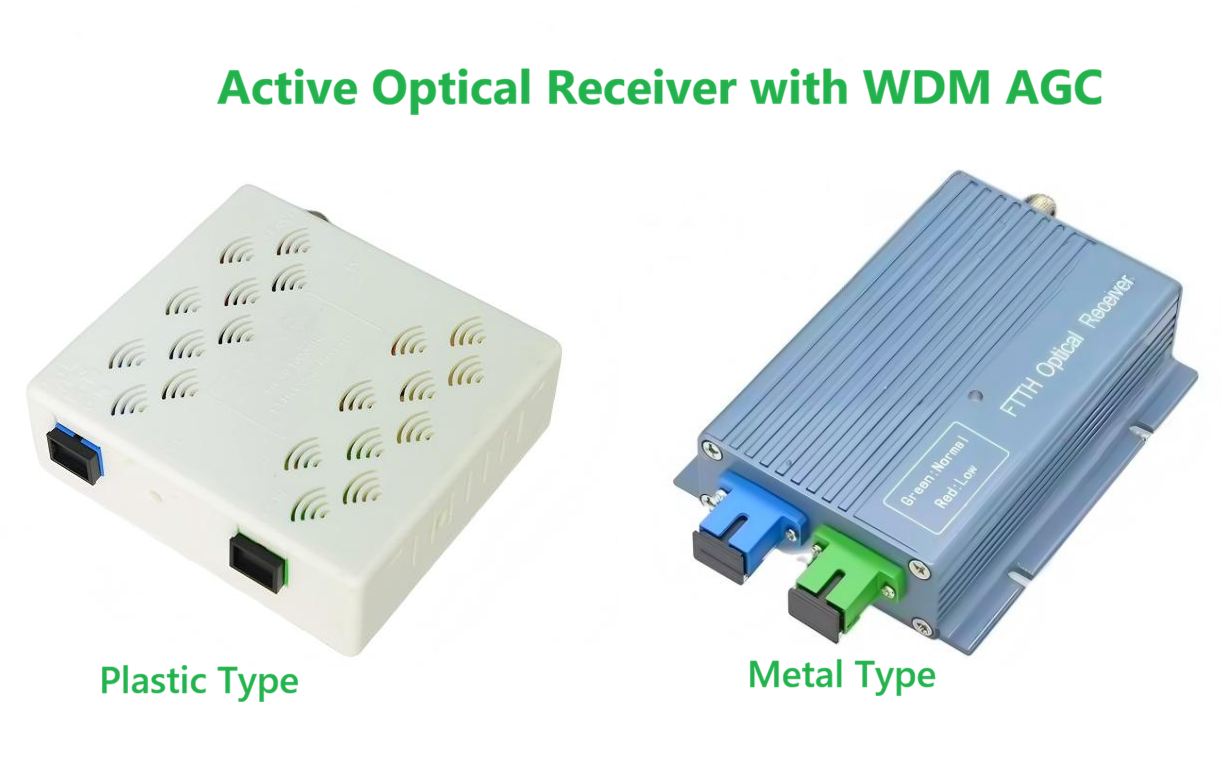

FTTH Active CATV Optical Receiver with WDM and AGC
LG-OR-WDM-AGC-P
Product Overview
Optical receiver with WDM 1310/1490/1550nm, AGC range -10~0dBm, Optical input power -15~+2dBm, RF Bandwidth 45~1000MHz, DC5V, metal or plastic shell
Product Information
Product Details
Specification
Optical Parameter | |
Wavelength | 1100nm~1600nm |
Input Power Range | -15~+2 dBm |
Input Return loss | >45dB |
Interface | SC/APC, SC/UPC |
RF Parameter | |
Bandwidth | 45~1000MHz |
F Connector type | Metric or imperial |
Impedance | 75Ω |
Output RF Level | 65~82 ±1dBuV |
Flatness | ±0.5 dB @ 45~550MHz ±0.75 dB @ 550~750/862/1000MHz |
Others | |
AGC range | -10~0dBm |
WDM Wavelength | 1550nm/1490nm/1310nm |
C/N, C/CTB, C/CSO | ≥50dB, ≥65dB, ≥63dB |
MER | >33dB @ tested at-15dBm optical input |
OPT Indicator | Red @ optical power <-9dBm Green @ optical power >-9dBm Orange @ optical power >+2dBm |
Power Supply | DC 5V with external power adapter |
Weight | 200g |
Environment condition | Operating Temp: -20℃~60℃ Storage Temp: -40℃~70℃ RH: 5%~90% |
Ordering Information
Model | Description |
LG-OR-WDM-AGC-M | Optical receiver with WDM 1310/1490/1550nm, AGC range -10~0dBm, Optical input power -15~+2dBm, RF Bandwidth 45~1000MHz, DC5V, Metal shell |
c | Optical receiver with WDM 1310/1490/1550nm, AGC range -10~0dBm, Optical input power -15~+2dBm, RF Bandwidth 45~1000MHz, DC5V, Plastic shell |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OR-WDM-AGC-P | FTTH Active CATV Optical Receiver with WDM and AGC | In Stock |
