3302F Series OTDR 100m~256km

LG-OTDR-3302F-D32

Product Overview

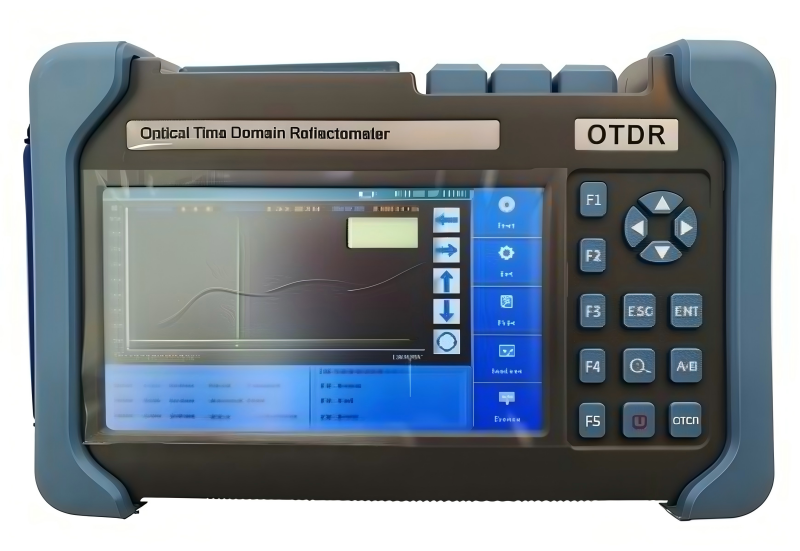

OTDR can be used to test SMF, MMF and PON Network, support VFL, OPM, LS and microscope probe functions.

Model: LG-OTDR-3302F-D32

Status: In Stock

Specification

Dimension	302715cm；1.8kg
Display	7 inch TFT-LCD with LED backlight, touch screen
Interface	1×RJ45 port, 2×USB port
Power Supply	10V(dc), 100V(ac) to 240V(ac), 50~60Hz
Battery	7.4V(dc)/4.4Ah lithium battery Operating time: 12 hours, Telcordia GR-196-CORE Charging time: <4 hours (power off)
Power Saving	Backlight off: Disable/1 to 99 minutes Auto shutdown: Disable/1 to 99 minutes
Data Storage	Internal memory: 4GB (about 40,000 groups of curves)
Language	English, Chinese, French, Korean, Russian, Spanish, etc
Environmental Conditions	Operating temp: -10℃~+50℃ Storage temp: -20℃~+75℃, Humidity: ≤95% (non-condensation) Proof: IP65 (IEC60529)

Test Parameter

Pulse Width	Single mode: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
Testing Distance	Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km, 256km
Sampling Resolution	Minimum 5cm
Sampling Point	Maximum 128,000 points
Linearity	≤0.05dB/dB
scale Indication	X axis: 4m~70m/div Y axis: Minimum 0.09dB/div
Distance Resolution	0.01m
Distance Accuracy	±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
Reflectance Accuracy	Single mode: ±2dB, multi-mode: ±4dB
IOR Setting	1.4000~1.7000, 0.0001 step
OTDR Trace Format	Telcordia universal, SOR, issue 2 (SR-4731) OTDR: User selectable automatic or manual set-up
Fiber Event Analysis	Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps) Reflective: 0.01 to 32dB (0.01dB steps) Fiber end/break: 3 to 20dB (1dB steps)
