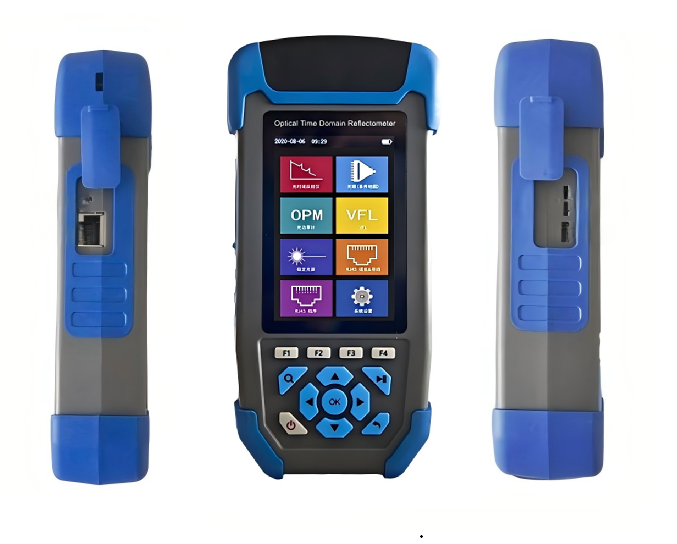

3302S Series Handheld OTDR 500m~60km for SMF

Dimension

173*82*37mm；350g

Display

3.5 inch color LCD

Data Interface

Micro USB

Power Supply

Polymer Li-battery: 3.7V 4000mAh

Power Adapter: 5V DC, 2A

Battery life

Standby >20h

Operating time>12h

Data Storage

Internal: ≥600

External: TF Card

Language

English, Chinese

Environmental

Conditions

Operating temp: -10℃~+50℃

Storage temp: -40℃~+75℃,

Humidity: ≤95% (non-condensation)

OTDR Module

Fiber Type: G.652 single mode

Wavelength: 1310nm/1550nm ±20nm

Pulse Width: 3ns~10μs

Testing Range: 500m~60km

Dynamic Range: 24dB/22dB

Connector: FC/UPC (default), SC/ST (option)

Event/Att Dead Zone: 3m/8m

Linearity: ±0.02dB/dB

Range Accuracy: ±(1m+Sampling Interval +0.05%xTest Distance)

Reflection Accuracy: ±3dB

Sampling Points: 16k~128k

Sampling Resolution: 0.05m~8m

Trace format: SOR

Laser Safety Level: Class II level

VFL Module

(option)

Wavelength (±20nm): 650nm

Power: 10mw

Connector: FC/UPC (default), SC/ST (option)

Launching Mode: CW/1Hz/2Hz

OPM Module

(option)

Wavelength Range (±20nm): 800~1700nm

Calibrated Wavelength: 850/1300/1310/1490/1550/1625/1650nm

Test Range Type A:  -50~+26dBm

Accuracy: ±0.5%dB

Modulation Identification: CW/270/330/1k/2kHz

Connector: FC/UPC (default), SC/ST (option)

OLS Module

(option)

Laser type: FP-LD

Working Wavelength Type A: 1310/1550nm

Type B: 1550nm

Output Power: -5dBm

Modulation Identification: 270/330/1k/2kHz

Stability: CW, ±0.5Db/15min

Connector: FC/UPC (default), SC/ST (option)

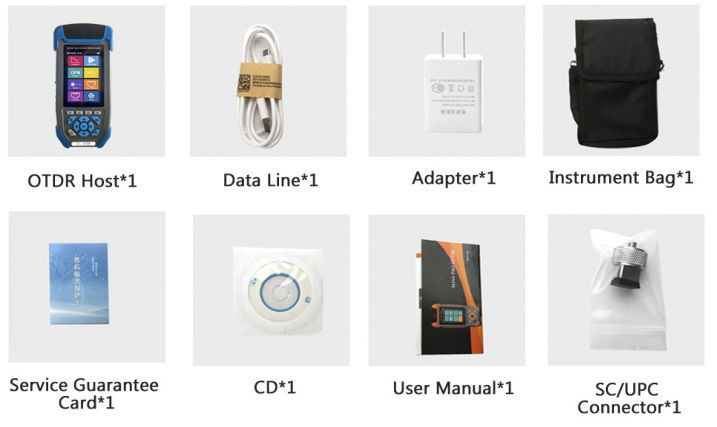

Model

Description

LG-OTDR-3302S

OTDR, support Event map(iOLM), LS (1310/1550nm), OPM, VFL, cable sequence proofreading, cable length measurement and lighting functions.
