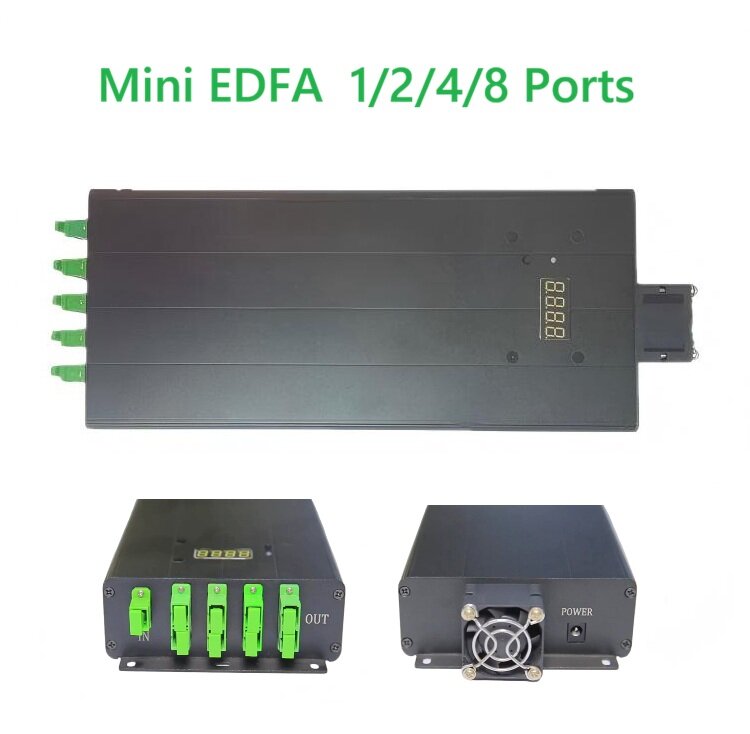

Mini Optical Fiber Amplifier EDFA 1/2/4/8 Ports

LG-EDFA-1550-M04

Product Overview

Er-Yb co-doped double cladding optical fiber amplifier, WDM is optional, output power 13~33dBm, SC optical port.

Model: LG-EDFA-1550-M04

Status: In Stock

Feature

Er-Yb co-doped DCF Amplify Technology: Patent Pump Dump Technology
High Power：up to 2W total，1 Unit for 2000～4000 optical node.
Output optical power is fixed.
Dual CPU to deal control loop and communication separately.
High stability and reliability, MTTF >150000 hours.
Intelligent Temperature Control System: using a dedicated Temperature control chip which make cooling and power loss reduce 30% than competitors.
Integrated WDM (1310nm/1490nm/1550nm) is optional, can match with PON system to construction the triple network integration.

Specification

Qty of output port	1, 2, 4, 8 (optional)
Output Power	13~33 dBm (optional)
Input power	0~+10 dBm
Optic Interface	SC/APC
Optic wavelength	1550nm
Output power stability	±0.05 dB
Input pump leakage	-35 dB
Output pump leakage	-45 dB
Polarization dependent gain	0.3 dB
Polarization mode dispersion	<0.5 PS
Return loss	-45 dB
Noise figure	6 dB (Tested at +5dBm Input)
Power supply	Input 100~240V AC; Output 5~12V DC. Output 5VAC, 12VDC is optional Duplicate supply is optional.
Environment temperature	Operating Temp: -5℃~60℃ Storage Temp: -40℃~80℃ RH: 10%~90%

Ordering Information

Model	Description
LG-EDFA-1550-M01	1-Port EDFA, 1550nm, SC/APC, output power 13~33dBm, single power supply
LG-EDFA-1550-M02	2-Port EDFA, 1550nm, SC/APC, output power 13~33dBm, single power supply
LG-EDFA-1550-M04	4-Port EDFA, 1550nm, SC/APC, output power 13~33dBm, single power supply
LG-EDFA-1550-M08	8-Port EDFA, 1550nm, SC/APC, output power 13~33dBm, single power supply

Model	Name	Status	Action
LG-EDFA-1550-M04	Mini Optical Fiber Amplifier EDFA 1/2/4/8 Ports	In Stock
