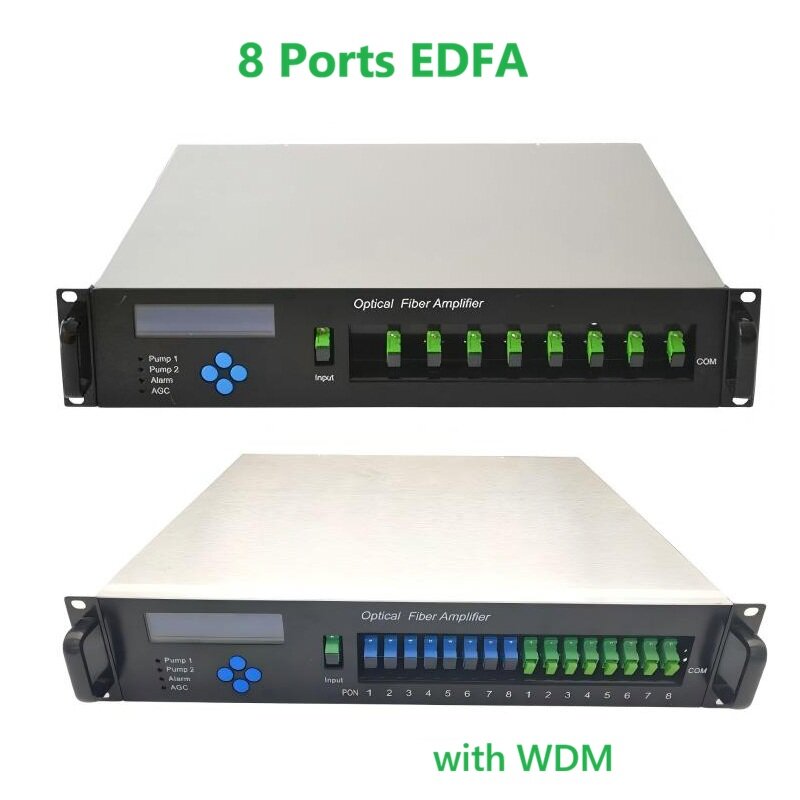

8 Ports Optical Fiber Amplifier EDFA
LG-EDFA-1550-08
Product Overview
Er-Yb co-doped double cladding optical fiber amplifier, WDM is optional, output power 20~40dBm, SC optical port, FC is optional.
Product Information
Product Details
Feature
High output power, E-Y co-doped.
Warm backup, on-line standby, auto redundancy.
Low optical input power, adjustable output optical power -3dB to -6dB.
Adopts JDSU or Oclaro Pump laser.
LCD displays the working condition of the machine
Support network management monitoring function.
Support intelligent pump over temperature protection function.
Plug-in Dual power supply and support cold, hot backup.
Integrated WDM (1310nm/1490nm/1550nm) is optional, can match with PON system to construction the triple network integration.
Specification
Qty of output port | 8 |
Management Port | RJ45 |
Output power | 20~40 dBm |
Output power | 400~5000 mW |
Input power | -10~+10 dBm |
Adjustable output range | -3~-6 dBm |
Optic Interface | SC/APC (default) FC/APC (optional) |
Optic wavelength | 1540~1565nm |
Output Power Stability | <±0.2 dB |
Polarization sensitivity | <0.2 dB |
Polarization mode dispersion | <0.5 PS |
Return loss | ≥45 dB |
Noise Figure | <0.5 dB (0dBm@1550nm) |
Power supply | Dual power supply 86~265V AC -48V DC (optional) |
Power consumption | ≤100W |
Environment Temperature | Operating Temp: 0℃~50℃ Storage Temp: -20℃~85℃ RH: 20%~85% |
Ordering Information
Model | Description |
LG-EDFA-1550-08 | 8-Port EDFA, 1550nm, SC/APC, output power 20~40dBm, dual power supply |
LG-EDFA-WDM-08 | 8-Port EDFA with WDM, 1310/1490/1550nm, SC port, output power 20~40dBm, dual power supply |
