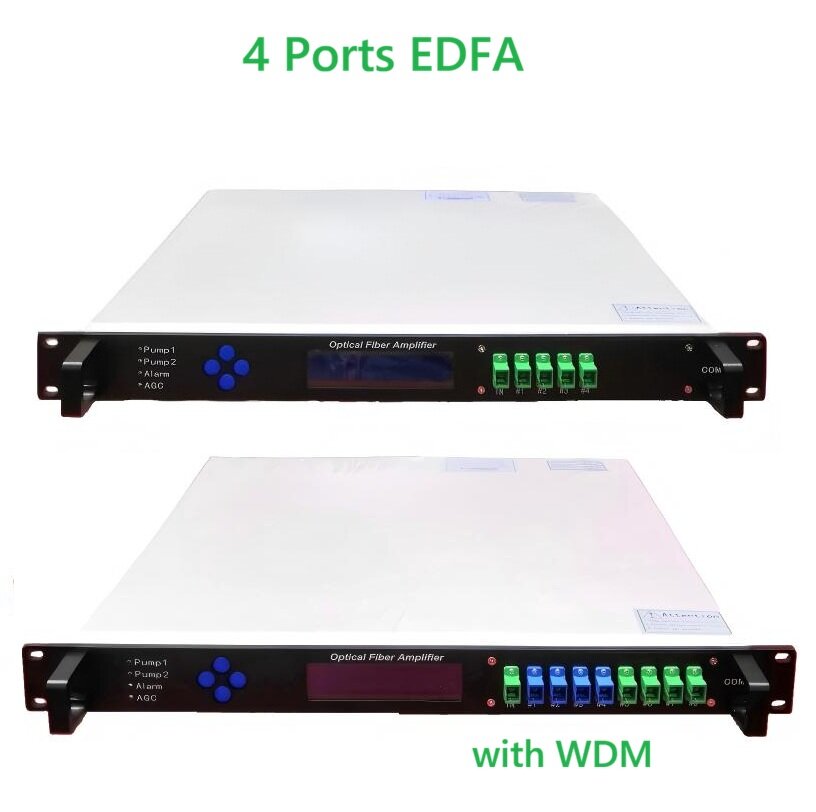

4 Ports Optical Fiber Amplifier EDFA

LG-EDFA-WDM-04

Product Overview

Er-Yb co-doped double cladding optical fiber amplifier, WDM is optional, output power 20~40dBm, SC optical port, FC is optional.

Model: LG-EDFA-WDM-04

Status: In Stock

Feature

High output power, E-Y co-doped.
Warm backup, on-line standby, auto redundancy.
Low optical input power, adjustable output optical power -3dB to -6dB.
Adopts JDSU or Oclaro Pump laser.
LCD displays the working condition of the machine
Support network management monitoring function.
Support intelligent pump over temperature protection function.
Plug-in Dual power supply and support cold, hot backup.
Integrated WDM (1310nm/1490nm/1550nm) is optional, can match with PON system to construction the triple network integration.

Specification

Qty of output port	4
Management Port	RJ45
Output power	20~40 dBm
Output power	400~5000 mW
Input power	-10~+10 dBm
Adjustable output range	-3~-6 dBm
Optic Interface	SC/APC (default) FC/APC (optional)
Optic wavelength	1540~1565nm
Output Power Stability	<±0.2 dB
Polarization sensitivity	<0.2 dB
Polarization mode dispersion	<0.5 PS
Return loss	≥45 dB
Noise Figure	<0.5 dB (0dBm@1550nm)
Power supply	Dual power supply 86~265V AC -48V DC (optional)
Power consumption	≤100W
Environment Temperature	Operating Temp: 0℃~50℃ Storage Temp: -20℃~85℃ RH: 20%~85%

Ordering Information

Model	Description
LG-EDFA-1550-04	4-Port EDFA, 1550nm, SC/APC, output power 20~40dBm, dual power supply
LG-EDFA-WDM-04	4-Port EDFA with WDM, 1310/1490/1550nm, SC port, output power 20~40dBm, dual power supply
