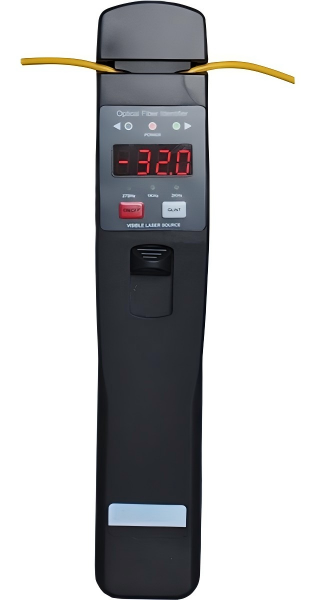

Optical Fiber Identifier with VFL
LG-OFI-VFL
Product Overview
The fiber optic identifier can measure the optical power and direction of fiber optic transmission.
Product Information
Product Details
Feature
Displays optical power values.
Supports online testing without service interruption.
Built-in Visual Fault Locator (VFL) function.
Low battery monitoring function
Specification
Wave respond | 800nm-1700nm |
Application of optical fiber | 250um/900um/2.0mm/2.5mm/3mm |
Identified Signal Type | 270HZ/1KHZ/2KHZ |
Identification of modulated signals | Yes |
Power Measurement | Yes |
Display | LED segment |
Tone | Yes |
Low power monitoring | Yes |
Detector type | 1mm InGaAs |
Pass through insertion loss
| 1.0dB @ 250um optic fiber 1.0dB @ 900um optic fiber 2.0dB @ 3mm optic fiber |
Minimum detection power | Test conditions: 1550nm -35dBm @ 250um optic fiber -35dBm @ 900um optic fiber -30dBm @ 3mm optic fiber Test conditions: 1310nm -30dBm @ 250um optic fiber -30dBm @ 900um optic fiber -25dBm @ 3mm optic fiber |
VFL module | Wavelength : 650nm±10nm Output Power: 10 mW Fiber Port: FC/PC |
Power supply | 2*AA 1.5V Alkaline Battery |
Operation Temp | -10℃ to +50℃ |
Storage Temp | -20℃ to +70℃ |
Outline size | 230*43*36mm |
weight | 200g |
Ordering Information
Model | Description |
LG-OFI-VFL | Optical Fiber Identifier with VFL built-in |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OFI-VFL | Optical Fiber Identifier with VFL | In Stock |
