Cable Anchor Tension Clamp
PA1500
Product Overview

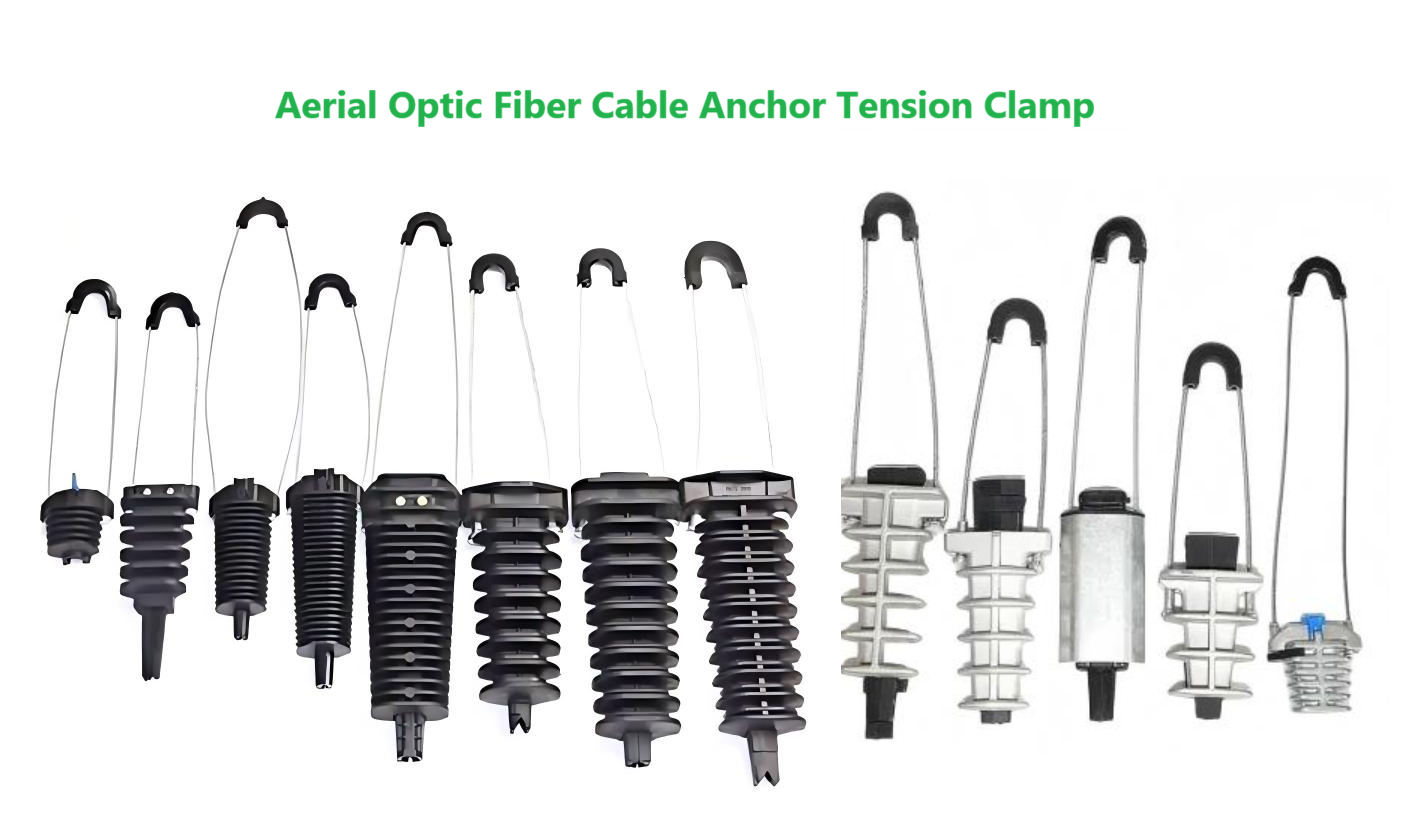

Optic Fiber Cable Anchor Tension Clamp: plastic type and metal type
Product Information
Product Details
Anchor clamps are used for the fastening and tensioning of self-supporting circular fiber optic cables during overhead/aerial cable laying. Permissible cable diameters range from 6 to 20 mm.
These anchor clamps allow for simple and quick cable installation by clamping directly onto the cable outer sheath without the use of additional protectors.
Material: high strength aluminum alloy. Nylon plus fiber glass inserted, stainless steel rope.
Model | Applicable conductor cross-section (mm²) |
PA300 | 4~8 |
PA500 | 4.5~9 |
PA600 | 8~15 |
PA1500 | 25~50 |
PA2000 | 54.6~70 |
PA25 | 16~25 |
PA50 | 10~50 |
PA54 | 50~70 |
PA70 | 25~70 |
PAM-08 | 10~35 |
PA-6 | 1.5~1.6 |
PA-7 | 1.5~25 |
PAL500 | 16~50 |
PAL1000A | 16~35 |
PAL1000 | 25x35 |
PAL1500 | 50x70 |
PAL2000 | 70x150 |
STB | 2*16/2*25 |
STA | 1*10/1*16 |
STC | 4*16/4*25 |
STD | 1*16/1*70 |
LA1 | 4*16/4*25 |
SL2.1 | 16~25 |
JBG-1 | 35-70 |
DCR-1 | 1*4/1*25 |
DCR-2 | 2x4/2x25 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| PA1500 | Cable Anchor Tension Clamp | In Stock |
