ADSS Tension Clamp double layers for cable span 200m~400m
LG-ADSS-TC02
Product Overview
Tension Clamp with dead-end guy grip and preformed rods, suitable for ADSS cables with medium span 200m~400m
Product Information
Product Details
Specification
Model | LG-ADSS-TC02 (ADSS Tension Clamp) |
Material | Aluminum-clad steel, Galvanized steel wire, |
Applicable cable | ADSS cable with 200~400m medium span |
Applicable cable OD | 8.5mm~16.5mm |
Clamp RTS | 20KN~40KN (customization supported) |

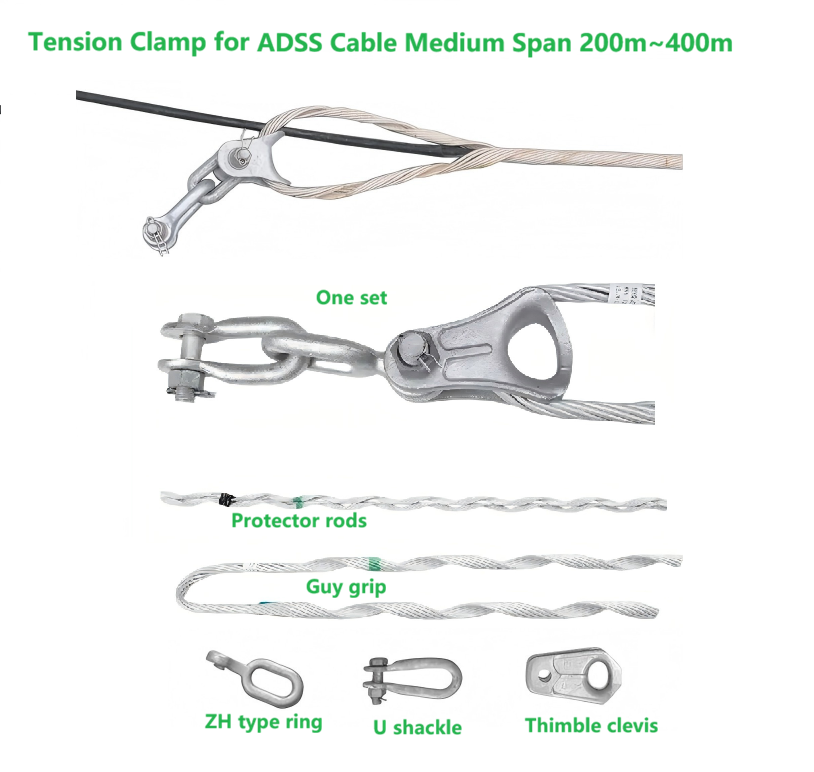

One set including | Outer rods, Inner rods, Thimble clevis, ZH type ring, U-shackle, Bolt and nut etc |
Note:
It is best to order ADSS cables and its supporting fittings together.
If purchased separately, please provide specifications of the ADSS cable
( outer diameter, span length, MAT, RTS/UTS, etc.), as well as the working environment,
so that we can recommend suitable models based on the data for the smooth implementation of the project.
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ADSS-TC02 | ADSS Tension Clamp double layers for cable span 200m~400m | In Stock |
