OPGW Tension Clamp Double
LG-OPGW-TC02
Product Overview
When OPGW cables are applied in specially designed operating lines with large spans, high drops and large corners, and the breaking force reaches 160kN or more, enhanced double tension clamps are used.
Product Information
Product Details
When OPGW cables are applied in specially designed operating lines with large spans, high drops and large corners, and the breaking force reaches 160kN or more, enhanced double tension clamps are used.
Specification
Model | LG-OPGW-TC02 (OPGW Double Tension Clamp) |
Rods material | Aluminum-clad steel wire, aluminum alloy wire |
Cable OD | 14mm~22mm |
Clamp RTS | > 95% of cable RTS |
Breaking strength | >160KN (customization supported) |

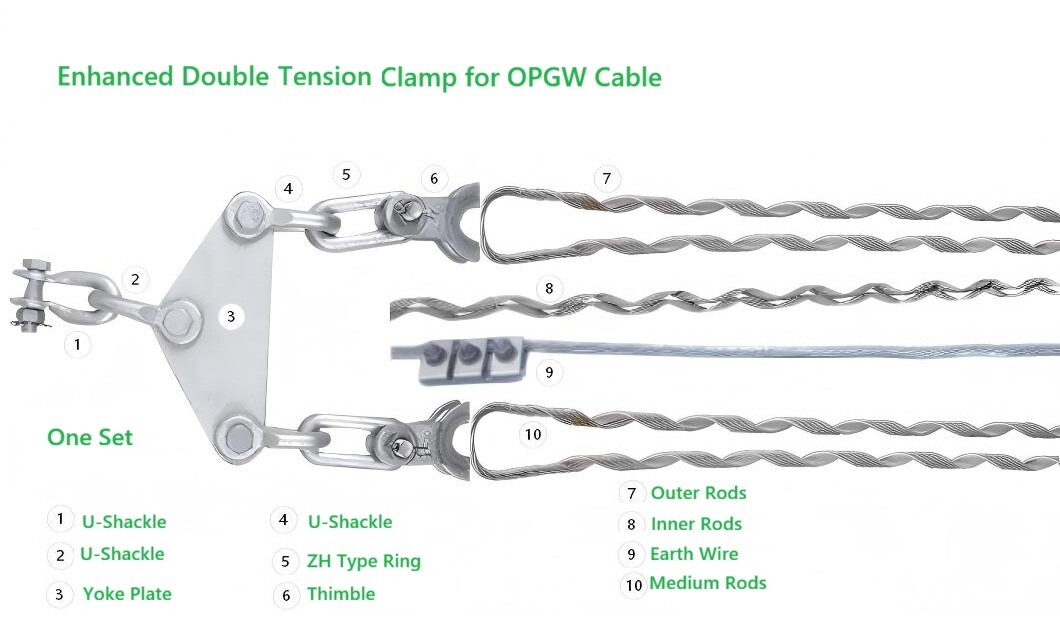

One set including | 3pcs U-Shackle, Yoke Plate, Thimble Clevis, ZH Type Ring, Outer Rods, Medium Rods, Inner Rods, Earth Wire, Bolt and nut etc |
Note:
It is best to order ADSS cables and its supporting fittings together.
If purchased separately, please provide specifications of the ADSS cable
( outer diameter, span length, MAT, RTS/UTS, etc.), as well as the working environment,
so that we can recommend suitable models based on the data for the smooth implementation of the project.
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OPGW-TC02 | OPGW Tension Clamp Double | In Stock |
