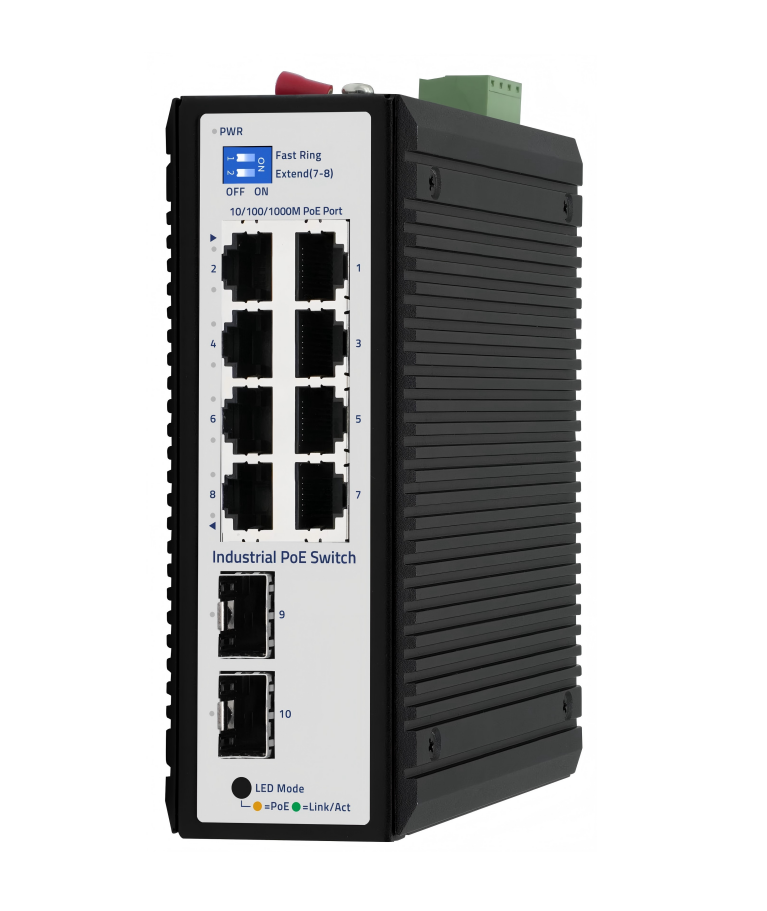

Industrial 8-Port Gigabit POE Switch (8*POE + 2*SFP)
LG-IPSW-GE-8P2S
Product Overview
Ethernet Switch with 8 *GE POE ports and 2*GE SFP slots, supports 10/100/1000M adaptation, POE port supports IEEE802.3af/at.
Product Information
Product Details
Specification
Model | LG-IPSW-GE-8P2S (Industrial 8-Port Gigabit POE Switch) |
Interface | 8*GE POE ports, 2*GE SFP slot. |
Bandwidth | 20Gbps |
Packet Forwarding Rate | 14.9Mpp |
Packet Buffer | 4Mbit |
MAC Address Table | 8K |
Transmission Method | Store and Forward |
Surge Protection | Port Surge: common mode 6KV, differential mode 2KV; ESD: Air 15KV, Contact 8KV. |
Power supply | DC12～55V; DC 48~55V(POE) Power cable : 4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-); DC 2.1 (DC 2.1 cannot be used together with V1/ V2) |
Dimension | 138*108*51mm |
Weight | 0.7KG |
Environment condition | Operating temp: -40℃~+75℃ Storage temp: -40℃~+85℃ RH: 5%~95% (non-condensing) |
PoE | Standard: IEEE802.3af (15.4W); IEEE802.3at(30W) PoE port output voltage: DC 48~55V Port 1 supports HiPoE 60W Ports 2~8 PoE power output <30W Power Budget: 200W@60°C; 120W@75°C |
Industry standard | EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) , EN61000-4-5 (Surge) |
Protocol | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
Safety certificate | CE, FCC, RoHS |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-IPSW-GE-8P2S | Industrial 8-Port Gigabit POE Switch (8*POE + 2*SFP) | In Stock |
