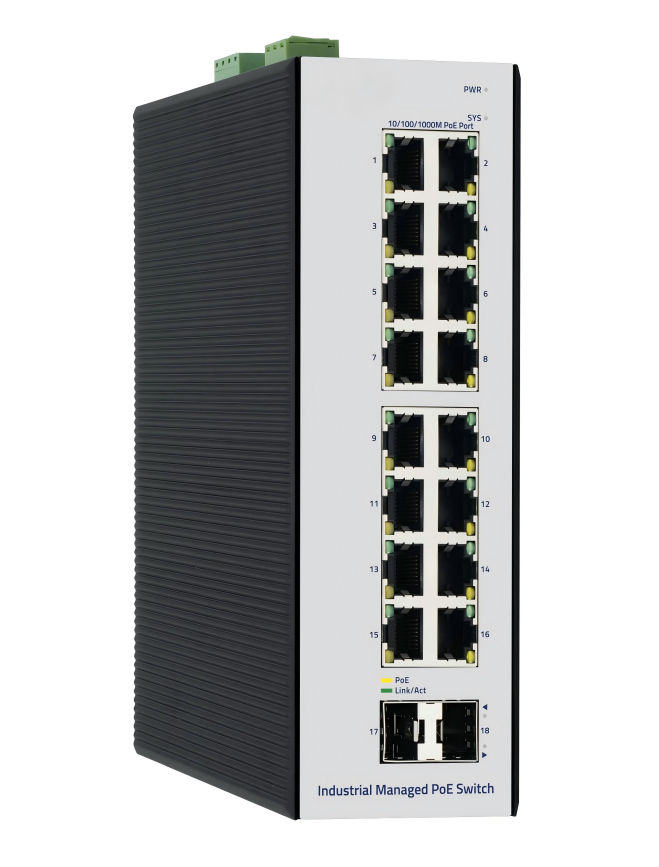

Industrial Managed 16-Port Gigabit POE Switch (16*POE + 2*SFP)

Model

LG-IPSW-GE-16P2SM

Interface

16*GE POE ports, 2*GE SFP slot, 1*Console port

Bandwidth

36Gbps

Packet Forwarding Rate

26.78Mpp

Packet Buffer

4.1Mbit

MAC Address Table

8K

Transmission Method

Store and Forward

Surge Protection

Port Surge: common mode 6KV, differential mode 2KV;

ESD: Air 15KV, Contact 8KV.

Power Supply: common mode 2KV, differential 1KV.

Power supply

DC12～55V; DC 48~55V(POE)

Power cable : 4 PIN Industrial terminal

(redundant V1+V1-, V2+V2-)

Dimension

187*128*63mm

Weight

1.2KG

Environment condition

Operating temp:  -40℃~+75℃

Storage temp:   -40℃~+85℃

RH: 5%~95% (non-condensing)

Relay

Reserved relay (3pin terminal block)

Protection: common mode 2KV, differential mode 1KV

PoE

Standard: IEEE802.3af (15.4W); IEEE802.3at(30W)

PoE port output voltage: DC 48~55V

Ports 1-16 PoE power output <30W

Power Budget: 300W@55°C; 240W@65°C; 120W@75°C

Industry standard

FCC Part 15 class A; EN61000-4-2 (ESD)

EN61000-4-4 (EFT) , EN61000-4-5 (Surge)

Protocol

IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x, IEEE 802.1w, IEEE 802.1d

Certificate

CE, FCC, RoHS
