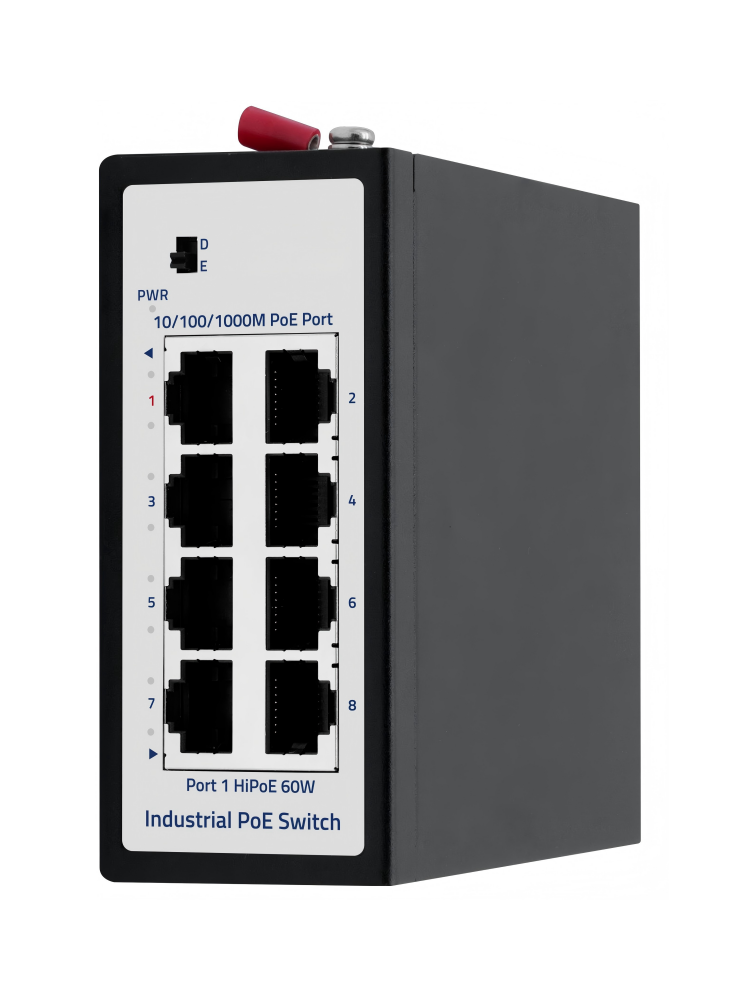

Industrial 8-Port Gigabit POE Switch (8*POE)

Model

LG-IPSW-GE-8P  (Industrial 8-Port Gigabit POE Switch)

Interface

8* 10/100/1000M POE ports

Bandwidth

16Gbps

Packet Forwarding Rate

11.9Mpp

MAC Address Table

8K

VLAN

Range 1-4094, max 4K active VLAN

Transmission Method

Store and Forward

Surge Protection

Port Surge: Common mode 6KV, Differential mode 2KV.

Electrostatic ESD: Air 15KV, Contact 8KV.

Power supply: Common mode 2KV, Differential mode 1KV

Power supply

DC12~55V

DC48~55V (PoE)

Power cable :

4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-);

DC 2.1 (DC 2.1 cannot be used together with V1/ V2)

Dimension

100*106*44mm

Weight

0.55KG

Environment condition

Operating temp:  -40℃~+75℃

Storage temp:   -40℃~+85℃

RH: 5%~95% (non-condensing)

PoE

PoE standard: IEEE802.3af /IEEE802.3at

Port 1 supports HiPoE 60W

Ports 2~8 PoE power output <30W

Support IEEE 802.3af/at self-adaptive

Industry standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT) , EN61000-4-5 (Surge)

Protocol

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Safety certificate

CE, FCC, RoHS
