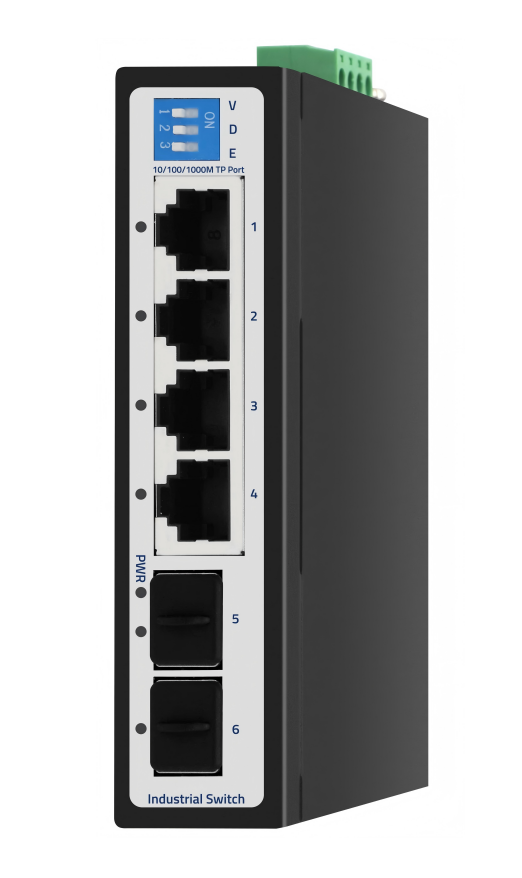

Industrial 4-Port Gigabit POE Switch (4*POE + 2*SFP)

Interface

4*GE POE ports; 2*GE SFP slot.

Bandwidth

12Gbps

Packet Forwarding Rate

8.928Mpp

Packet Buffer

1Mbit

MAC Address Table

2K

Transmission Method

Store and Forward

Surge Protection

Port Surge: common mode 4KV, differential mode 2KV;

ESD: Air 8KV, Contact 6KV.

Power supply

Voltage input: DC12～55V

Power cable :

4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-);

DC 2.1 (DC 2.1 cannot be used together with V1/ V2)

Dimension

120*87*30mm

Weight

0.45KG

Environment condition

Operating temp:  -40℃~+75℃

Storage temp:   -40℃~+85℃

RH: 5%~95% (non-condensing)

PoE standard

PoE standard: IEEE802.3af /IEEE802.3at

Single port max: 15.4 W (IEEE 802.3af)

Single port max: 30 W (IEEE 802.3at)

PoE compatibility: IEEE 802.3af/at self-adaptive

PoE port output voltage: DC 12-55V

PoE power supply wire core:1/2+ ; 3/6-

Industry standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT) , EN61000-4-5 (Surge)

Protocol

IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab

Safety certificate

CE, FCC, RoHS
