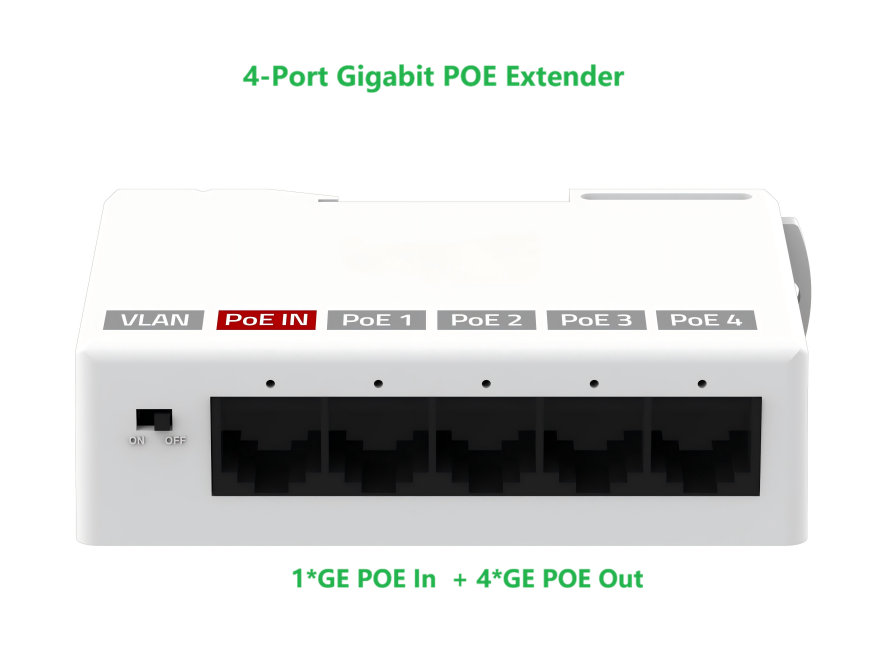

4-Port Gigabit POE Extender (1*POE In, 4*POE Out )
LG-PEX-GE-1T4T
Product Overview
POE Extender with 1*GE POE Input Port and 4*GE POE Output Ports, supports 10/100/1000M adaptation, POE port supports IEEE802.3af/at.
Product Information
Product Details
Feature
Support 1*GE POE Input Port, 4*GE POE Output Port.
RJ45 port supports 10/100/1000M adaptation.
Supports automatic port flipping (Auto MDI/MDIX).
Adopting a storage and forwarding exchange mechanism.
Support VLAN mode.
Having network and PoE relay extension roles.
Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses backpressure standard.
LED indicator will monitor the working status and assist in fault analysis.
Support desktop, wall mounting, Rail installation.
Specification
Model | LG-PEX-GE-1T4T (POE Extender) |
Interface | 1x10/100/1000M POE input port 4x10/100/1000M POE output ports |
Bandwidth | 10Gbps |
Packet Forwarding Rate | 7.5Mpp |
MAC Address Table | 2K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af (15.4W), IEEE802.3at (30W) |
PoE Port Output Voltage | DC 44-57V |
PoE Ports | PoE power output <30W |
PoE Power Budget | 44W |
Surge Protection | Differential mode 4KV. |
Power supply | IEEE802.3af/at/HiPoE |
Power Consumption | ≤3.8W |
Dimension | 96*67*28mm |
Weight | 0.1KG |
Environment condition | Operating temp: 0℃~+40℃ Storage temp: -40℃~+70℃ RH: 5%~95% (non-condensing) |
Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3x |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-PEX-GE-1T4T | 4-Port Gigabit POE Extender (1*POE In, 4*POE Out ) | In Stock |
