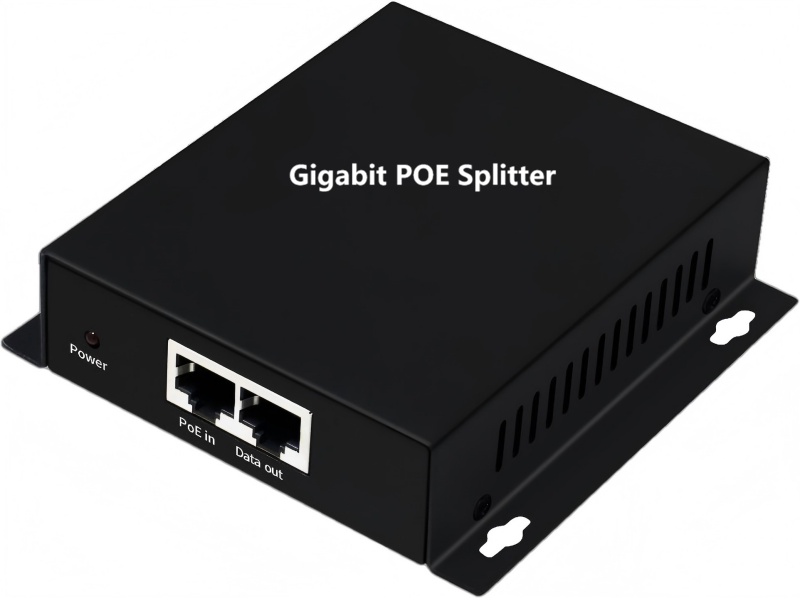

Gigabit POE Splitter

Model

LG-PSP-GE ( Gigabit POE Splitter)

Interface

1x 1000M POE in

1x 1000M data RJ45 out

1x Power DC 72W out

POE

IEEE802.3af /IEEE802.3at/IEEE802.3bt

Input 48V~55V

Power supply line sequence: 1/2+；3/6- or 4/5+；7/8- or 1/2-;3/6+

Interface: DC 2.5 / Industrial Phoenix 2PIN terminal

Output

Voltage: 12V

Power:72W

Indicator

Light on: PoE normal

Light off: Non- PoE

Dimension

105*107*33mm

Weight

0.3KG

Environment condition

Operating temp:  0℃~+50℃

Storage temp:   -40℃~+85℃

RH: 5%~95% (non-condensing)

Testing Standard

EN61000-4-2（ ESD ) touch 6K, air 8KV;
IEN61000-4-5 (Surge) common mode 4KV, differential mode 2KV;
EN61000-4-3（ RS ), EN61000-4-6（ CS )
EN61000-4-4（ EFT )
FCC Part 15/ CISPR32 /EN55032: CLASS A
IEC 60068-2-27 shock testing
IEC 60068-2-32 free fall testing
IEC 60068-2-6 vibration testing

Safety Certificate

CE, FCC, RoHS

MTBF

100,000 hours
